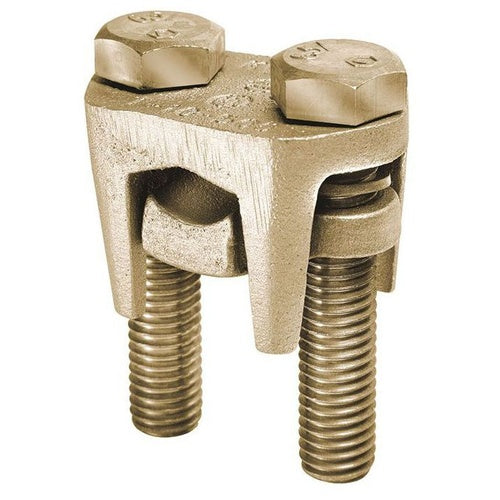

Burndy KVS26 2/0 Copper 2 Bolt Connector

Overview

Burndy KVS26 2/0 Copper 2 Bolt Connector

Product Specifications

• UPC: 78181006120
• Maximum Tap Conductor Size: (6) 8 AWG Stranded (Copperweld), 2/0 AWG Stranded (Copper), 3/0 AWG Solid (Copperweld)
• Material: High Strength Copper Alloy Body, Durium Bolt, Neoprene Ring
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Installation Torque 180 Lb-Inch
• Catalog Number: KVS26
• Brand Name: OKLIP[TM]
• Model: KVS
• Installation: Two Bolt
• Conductor Material: Copper/Copperweld
• Minimum Run Conductor Size: 2 AWG Stranded (Copper)
• Maximum Run Conductor Size: (7) 8 AWG Stranded (Copperweld), 2/0 AWG Stranded (Copper), 3/0 AWG Solid (Copperweld)
• Minimum Tap Conductor Size: 6 AWG Solid (Copper), 2/0 AWG Stranded (Copper)
• Catalog Description: COMPACT, TWO-PIECE, HIGH STRENGTH, HIGH COPPER ALLOY BURNDY OKLIP RECOMMENDED FOR HEAVY DUTY CONNECTIONS. NEOPRENE RINGS HOLD DURIUM BOLTS IN PLACE DURING INSTALLATION.INSTALLED WITH ORDINARY WRENCH.RECOMMENDED TIGHTENING TORQUE:180 IN-LB.
• Category: Large Terminals & Connectors
• Full Technical Description: High Strength Copper Alloy Body, Durium Bolt, Neoprene Ring Material; 2 AWG Stranded (Copper) min. Run Conductor Size; (7) 8 AWG Stranded (Copperweld), 2/0 AWG Stranded (Copper), 3/0 AWG Solid (Copperweld) Max. Run Conductor Size; 6 AWG Solid (Copper), 2/0 AWG Stranded (Copper) min. Tap Conductor Size; (6) 8 AWG Stranded (Copperweld), 2/0 AWG Stranded (Copper), 3/0 AWG Solid (Copperweld) Max. Tap Conductor Size; Two Bolt Installation; Copper/Copperweld Conductor Material; UL, CSA Approval; OKLIP[TM] Brand; RoHS Compatible; Installation Torque 180 lb-Inch; KVS Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810061206
• SKU Name: bur kvs26

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
