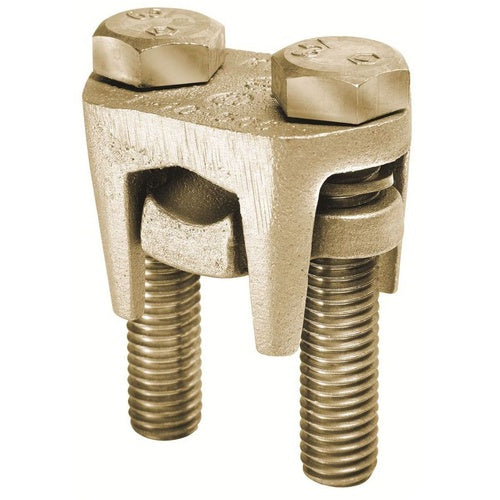

Burndy KVS28 4/0 Copper 2 Bolt Connector

Overview

Burndy KVS28 4/0 Copper 2 Bolt Connector

Product Specifications

• UPC: 78181006235
• Maximum Tap Conductor Size: (7) 6 AWG Stranded (Copperweld), 3/0 AWG Type V (Copperweld), 4/0 AWG Solid (Copperweld), 4/0 AWG Stranded (Copper)
• Material: High Strength Copper Alloy Body, Durium Bolt, Neoprene Ring
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Installation Torque 250 Lb-Inch
• Catalog Number: KVS28
• Brand Name: OKLIP[TM]
• Model: Type KVS
• Installation: Two Bolt
• Conductor Material: Copper/Copperweld
• Minimum Run Conductor Size: 1/0 AWG Stranded (Copper)
• Maximum Run Conductor Size: (7) 6 AWG Stranded (Copperweld), 3/0 AWG Type V (Copperweld), 4/0 AWG Solid (Copperweld), 4/0 AWG Stranded (Copper)
• Minimum Tap Conductor Size: 10 AWG Stranded (Copper)
• Catalog Description: COMPACT, TWO-PIECE, HIGH STRENGTH, HIGH COPPER ALLOY BURNDY OKLIP RECOMMENDED FOR HEAVY DUTY CONNECTIONS. NEOPRENE RINGS HOLD DURIUM BOLTS IN PLACE DURING INSTALLATION.INSTALLED WITH ORDINARY WRENCH.RECOMMENDED TIGHTENING TORQUE:250 IN-LB.
• Category: Large Terminals & Connectors
• Full Size Image: h
• Full Technical Description: High Strength Copper Alloy Body, Durium Bolt, Neoprene Ring Material; 1/0 AWG Stranded (Copper) min. Run Conductor Size; (7) 6 AWG Stranded (Copperweld), 3/0 AWG Type V (Copperweld), 4/0 AWG Solid (Copperweld), 4/0 AWG Stranded (Copper) Max. Run Conductor Size; 10 AWG Stranded (Copper) min. Tap Conductor Size; (7) 6 AWG Stranded (Copperweld), 3/0 AWG Type V (Copperweld), 4/0 AWG Solid (Copperweld), 4/0 AWG Stranded (Copper) Max. Tap Conductor Size; Two Bolt Installation; Copper/Copperweld Conductor Material; UL, CSA Approval; Oklip Brand; RoHS Compliant; Installation Torque 250 lb-Inch; TYPE KVS Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810062357
• SKU Name: bur kvs28

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
