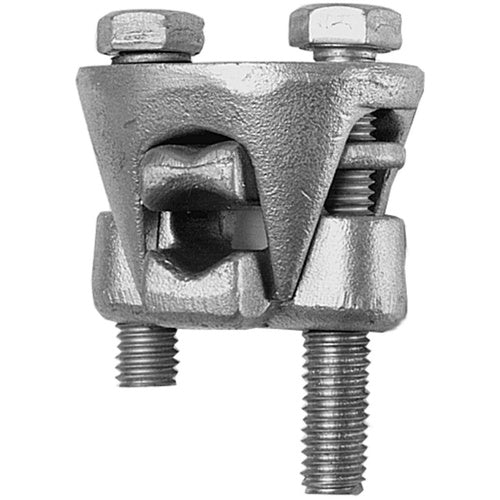

Burndy KVS31A 350Mcm Aluminum 2 Bolt Connector

Overview

Burndy KVS31A 350Mcm Aluminum 2 Bolt Connector

Product Specifications

• UPC: 78181007200
• Maximum Tap Conductor Size: 336.4 KCMIL (ACSR/AAAC/5005), 350 KCMIL (Aluminum/Copper), 0.68 Inch (Armor Rod)
• Material: High Conductivity Aluminum Alloy Body, Aluminum Hardware, Neoprene Ring, Non-Copper Bearing
• Additional Information: RoHS Compatible; Size 1-15/16 Inch L x 2-7/16 Inch W x 3-1/16 Inch H; Installation Torque 300 Lb-Inch
• Catalog Number: KVS31A
• Brand Name: OKLIP[TM]
• Model: KVS-A
• Installation: Two Bolt with Spacer
• Conductor Material: Aluminum/Copper/ACSR/AAAC/5005
• Minimum Run Conductor Size: 4/0 AWG (ACSR/AAAC/5005), 250 KCMIL (Aluminum/Copper), 0.57 Inch (Armor Rod)
• Maximum Run Conductor Size: 336.4 KCMIL (ACSR/AAAC/5005), 350 KCMIL (Aluminum/Copper), 0.68 Inch (Armor Rod)
• Minimum Tap Conductor Size: 6 AWG (ACSR/AAAC/5005), 6 AWG Stranded (Aluminum/Copper), 0.18 Inch (Armor Rod)
• Catalog Description: HIGH-CONDUCTIVITY, NON-COPPER BEARING ALUMINUM ALLOY CONNECTOR. SPACER BAR SEPARATES DISSIMILAR CONDUCTORS. INTENDED FOR HEAVY DUTY APPLICATIONS,CONDUCTOR RANGE,RUN CU AND AL :250-350.
• Category: Large Terminals & Connectors
• Full Technical Description: High Conductivity Aluminum Alloy Body, Aluminum Hardware, Neoprene Ring, Non-Copper Bearing Material; 4/0 AWG (Acsr/Aaac/5005), 250 kcmil (Aluminum/Copper), 0.57 Inch (Armor Rod) min. Run Conductor Size; 336.4 kcmil (Acsr/Aaac/5005), 350 kcmil (Aluminum/Copper), 0.68 Inch (Armor Rod) Max. Run Conductor Size; 6 AWG (Acsr/Aaac/5005), 6 AWG Stranded (Aluminum/Copper), 0.18 Inch (Armor Rod) min. Tap Conductor Size; 336.4 kcmil (Acsr/Aaac/5005), 350 kcmil (Aluminum/Copper), 0.68 Inch (Armor Rod) Max. Tap Conductor Size; Two Bolt With Spacer Installation; Aluminum/Copper/Acsr/Aaac/5005 Conductor Material; OKLIP[TM] Brand; RoHS Compatible; Size 1-15/16 Inch L X 2-7/16 Inch W X 3-1/16 Inch H; Installation Torque 300 lb-Inch; KVS-A Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810072004
• SKU Name: bur kvs31a
