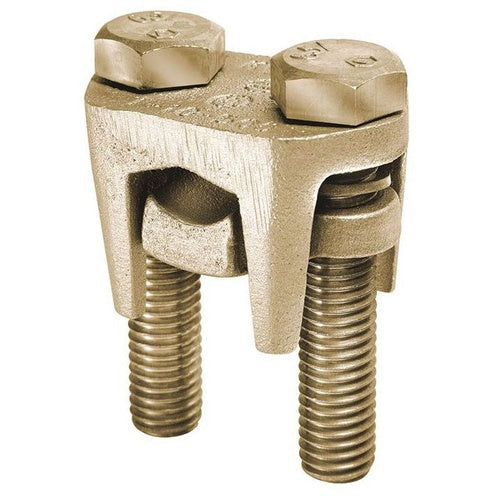

Burndy KVS34 500Mcm Copper 2 Bolt Connector

Overview

Burndy KVS34 500Mcm Copper 2 Bolt Connector

Product Specifications

• UPC: 78181006320
• Maximum Tap Conductor Size: 10 AWG Stranded (Copper), 6 AWG Stranded (Copperweld), 350 KCMIL Type V (Copperweld), 500 KCMIL (Copper)
• Material: High Strength Copper Alloy Body, Durium Bolt, Neoprene Ring
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Installation Torque 375 Lb-Inch
• Catalog Number: KVS34
• Brand Name: OKLIP[TM]
• Model: KVS
• Installation: Two Bolt
• Conductor Material: Copper/Copperweld
• Minimum Run Conductor Size: 400 KCMIL (Copper)
• Maximum Run Conductor Size: (19) 6 AWG Stranded (Copperweld), 350 KCMIL Type V (Copperweld), 500 KCMIL (Copper)
• Minimum Tap Conductor Size: 10 AWG Stranded (Copper), 500 KCMIL (Copper)
• Catalog Description: COMPACT, TWO-PIECE, HIGH STRENGTH, HIGH COPPER ALLOY BURNDY OKLIP RECOMMENDED FOR HEAVY DUTY CONNECTIONS. NEOPRENE RINGS HOLD DURIUM BOLTS IN PLACE DURING INSTALLATION.INSTALLED WITH ORDINARY WRENCH.RECOMMENDED TIGHTENING TORQUE:375 IN-LB.
• Category: Large Terminals & Connectors
• Full Technical Description: High Strength Copper Alloy Body, Durium Bolt, Neoprene Ring Material; 400 kcmil (Copper) min. Run Conductor Size; (19) 6 AWG Stranded (Copperweld), 350 kcmil Type V (Copperweld), 500 kcmil (Copper) Max. Run Conductor Size; 10 AWG Stranded (Copper), 500 kcmil (Copper) min. Tap Conductor Size; 10 AWG Stranded (Copper), 6 AWG Stranded (Copperweld), 350 kcmil Type V (Copperweld), 500 kcmil (Copper) Max. Tap Conductor Size; Two Bolt Installation; Copper/Copperweld Conductor Material; UL, CSA Approval; OKLIP[TM] Brand; RoHS Compatible; Installation Torque 375 lb-Inch; KVS Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810063200
• SKU Name: bur kvs34
