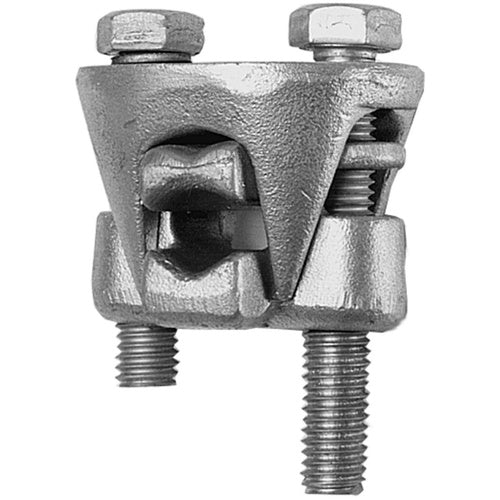

Burndy KVS34-A 500Mcm Aluminum 2 Bolt Connector

Overview

Burndy KVS34-A 500Mcm Aluminum 2 Bolt Connector

Product Specifications

• UPC: 78181007250
• Maximum Tap Conductor Size: 4 AWG STRANDED (COPPER/ALUMINUM), 397.5 KCMIL (ACSR/AAAC/5005), 500 KCMIL (COPPER/ALUMINUM), 0.814 INCH (ARMOR ROD)
• Material: HIGH CONDUCTIVITY ALUMINUM ALLOY BODY, ALUMINUM HARDWARE, NEOPRENE RING, NON COPPER BEARING
• Catalog Number: KVS34A
• Brand Name: ALUMINUM OKLIP[R]
• Model: KVS-A
• Installation: TWO BOLT WITH SPACER
• Conductor Material: COPPER/ALUMINUM/ACSR/AAAC/5005
• Minimum Run Conductor Size: 336.4 KCMIL (ACSR/AAAC/5005), 400 KCMIL (COPPER/ALUMINUM), 0.728 INCH (ARMOR ROD)
• Maximum Run Conductor Size: 397.5 KCMIL (ACSR/AAAC/5005), 500 KCMIL (COPPER/ALUMINUM), 0.814 INCH (ARMOR ROD)
• Minimum Tap Conductor Size: 5 AWG (ACSR/AAAC/5005), 4 AWG STRANDED (COPPER/ALUMINUM), 500 KCMIL (COPPER/ALUMINUM), 0.216 INCH (ARMOR ROD)
• Catalog Description: HIGH-CONDUCTIVITY, NON-COPPER BEARING ALUMINUM ALLOY CONNECTOR. SPACER BAR SEPARATES DISSIMILAR CONDUCTORS. INTENDED FOR HEAVY DUTY APPLICATIONS,CONDUCTOR RANGE,RUN CU AND AL :400-500.
• Category: Large Terminals & Connectors
• Full Technical Description: High Conductivity Aluminum Alloy Body, Aluminum Hardware, Neoprene Ring, Non Copper Bearing Material; 336.4 kcmil (Acsr/Aaac/5005), 400 kcmil (Copper/Aluminum), 0.728 Inch (Armor Rod) min. Run Conductor Size; 397.5 kcmil (Acsr/Aaac/5005), 500 kcmil (Copper/Aluminum), 0.814 Inch (Armor Rod) Max. Run Conductor Size; 5 AWG (Acsr/Aaac/5005), 4 AWG Stranded (Copper/Aluminum), 500 kcmil (Copper/Aluminum), 0.216 Inch (Armor Rod) min. Tap Conductor Size; 4 AWG Stranded (Copper/Aluminum), 397.5 kcmil (Acsr/Aaac/5005), 500 kcmil (Copper/Aluminum), 0.814 Inch (Armor Rod) Max. Tap Conductor Size; Two Bolt With Spacer Installation; Copper/Aluminum/Acsr/Aaac/5005 Conductor Material; Aluminum OKLIP[R] Brand; KVS-A Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810072509
• SKU Name: bur kvs34a

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
