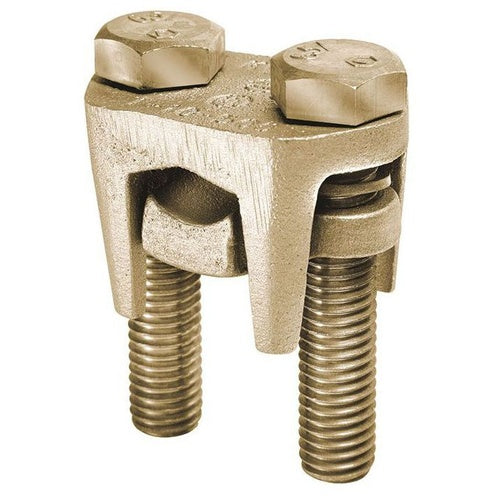

Burndy KVS44 1000Mcm Copper 2 Bolt Connector

Overview

Burndy KVS44 1000Mcm Copper 2 Bolt Connector

Product Specifications

• UPC: 78181006460
• Maximum Tap Conductor Size: 1000 KCMIL (Copper)
• Material: High Strength Copper Alloy Body, Durium Bolt, Neoprene Ring
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Installation Torque 500 Lb-Inch
• Catalog Number: KVS44
• Brand Name: OKLIP[TM]
• Model: KVS
• Installation: Two Bolt
• Conductor Material: Copper
• Minimum Run Conductor Size: 500 KCMIL (Copper)
• Maximum Run Conductor Size: 1000 KCMIL (Copper)
• Minimum Tap Conductor Size: 3/0 AWG Stranded (Copper)
• Catalog Description: COMPACT, TWO-PIECE, HIGH STRENGTH, HIGH COPPER ALLOY BURNDY OKLIP RECOMMENDED FOR HEAVY DUTY CONNECTIONS. NEOPRENE RINGS HOLD DURIUM BOLTS IN PLACE DURING INSTALLATION.INSTALLED WITH ORDINARY WRENCH,WRENCH SIZE: 15/16CROSS FLATS.
• Category: Large Terminals & Connectors
• Full Technical Description: High Strength Copper Alloy Body, Durium Bolt, Neoprene Ring Material; 500 kcmil (Copper) min. Run Conductor Size; 1000 kcmil (Copper) Max. Run Conductor Size; 3/0 AWG Stranded (Copper) min. Tap Conductor Size; 1000 kcmil (Copper) Max. Tap Conductor Size; Two Bolt Installation; Copper Conductor Material; UL, CSA Approval; OKLIP[TM] Brand; RoHS Compatible; Installation Torque 500 lb-Inch; KVS Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810064603
• SKU Name: bur kvs44
