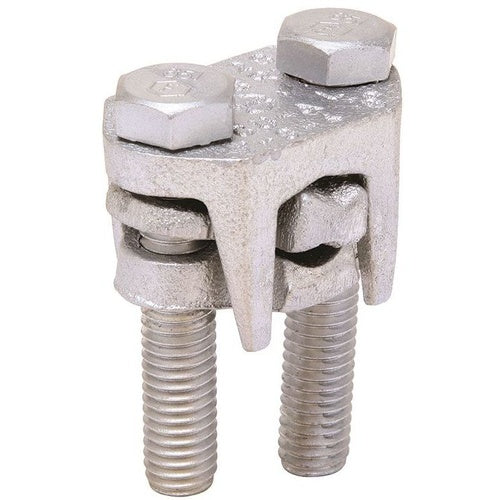

Burndy KVSU26 2/0 Aluminum/Copper 2 Bolt Connector

Overview

Burndy KVSU26 2/0 Aluminum/Copper 2 Bolt Connector

Product Specifications

• Catalog Description: TIN-PLATED COPPER ALLOY CONNECTOR WITH TIN PLATED SILICON BRONZE HARDWARE. SPACER BAR SEPARATES DISSIMILAR CONDUCTORS AND PROVIDES LONG CONTACT LENGTH,TIGHTENING TORQUE:180 IN -LB,WRENCH SIZE:1/2 CROSS FLATS.
• Category: Large Terminals & Connectors
• Full Technical Description: Universal, 2-Piece Type; Tin Plated High Strength Copper Alloy (Body), Neoprene (Ring), Tin Plated Silicon Bronze (Durium Hardware) Material; 2 AWG Stranded (Copper/Aluminum), 3 AWG (Acsr/Aaac/5005), 1 AWG Solid (Copper/Copperweld), 5/16 Inch (Steel) min. Run Conductor Size; 2/0 AWG Stranded (Copper/Aluminum), 2/0 AWG (Acsr/Aaac/5005), 3/0 AWG Solid (Copper/Copperweld), 7/16 Inch (Steel) Max. Run Conductor Size; 6 AWG Stranded (Copper/Aluminum), 6 AWG (Acsr/Aaac/5005), 6 AWG Solid (Copper/Copperweld), 3/16 Inch (Steel) min. Tap Conductor Size; 2/0 AWG Stranded (Copper/Aluminum), 2/0 AWG (Acsr/Aaac/5005), 3/0 AWG Solid (Copper/Copperweld), 7/16 Inch (Steel) Max. Tap Conductor Size; Peened Bolt With Spacer Installation; Copper/Aluminum/Acsr/Aaac/5005/Copperweld/Steel Conductor Material; CSA Approval; OKLIP[TM] Brand; RoHS Compliant; Torque Rating 180 Inch-Pound; Cross Flat 1/2 Inch; KVSU Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810081105
• SKU Name: bur kvsu26

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
