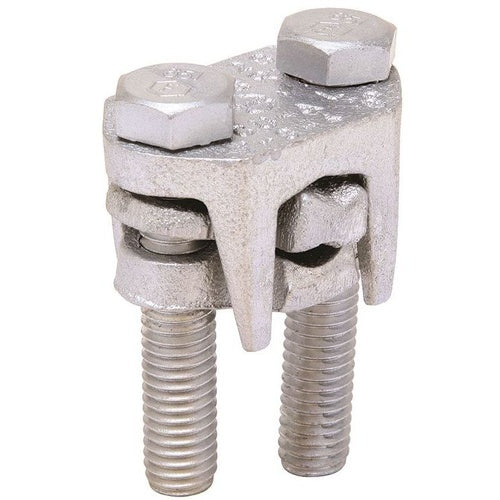

Burndy KVSU28 4/0 Aluminum/Copper 2 Bolt Connector

Overview

Burndy KVSU28 4/0 Aluminum/Copper 2 Bolt Connector

Product Specifications

• UPC: 78181008180
• Maximum Tap Conductor Size: 4/0 AWG (ACSR/AAAC/5005), 4/0 AWG Solid (Copper/Copperweld), 4/0 AWG Stranded (Aluminum/Copper), 1/2 Inch (Steel)
• Material: High Strength Tin Plated Copper Alloy Body, Neoprene Ring, Tin Plated Silicon Bronze Durium Hardware
• Approval: CSA
• Additional Information: RoHS Compatible; Size 1-1/8 Inch L x 1-3/4 Inch W x 2-3/8 Inch H; Installation Torque 250 Lb-Inch
• Catalog Number: KVSU28
• Brand Name: OKLIP[TM]
• Model: KVSU
• Installation: Peened Bolt with Spacer
• Conductor Material: Aluminum/Copper/ACSR/AAAC/5005/Copperweld/Steel
• Minimum Run Conductor Size: 1/0 AWG (ACSR/AAAC/5005), 1/0 AWG Stranded (Aluminum/Copper), 2/0 AWG Solid (Copper/Copperweld), 3/8 Inch (Steel)
• Maximum Run Conductor Size: 4/0 AWG (ACSR/AAAC/5005), 4/0 AWG Solid (Copper/Copperweld), 4/0 AWG Stranded (Aluminum/Copper), 1/2 Inch (Steel)
• Minimum Tap Conductor Size: 6 AWG (ACSR/AAAC/5005), 6 AWG Solid (Copper/Copperweld), 6 AWG Stranded (Aluminum/Copper), 5/32 Inch (Steel)
• Catalog Description: TIN-PLATED COPPER ALLOY CONNECTOR WITH TIN PLATED SILICON BRONZE HARDWARE. SPACER BAR SEPARATES DISSIMILAR CONDUCTORS AND PROVIDES LONG CONTACT LENGTH,TIGHTENING TORQUE:250 IN -LB,WRENCH SIZE:9/16 CROSS FLATS.
• Category: Large Terminals & Connectors
• Full Technical Description: High Strength Tin Plated Copper Alloy Body, Neoprene Ring, Tin Plated Silicon Bronze Durium Hardware Material; 1/0 AWG (Acsr/Aaac/5005), 1/0 AWG Stranded (Aluminum/Copper), 2/0 AWG Solid (Copper/Copperweld), 3/8 Inch (Steel) min. Run Conductor Size; 4/0 AWG (Acsr/Aaac/5005), 4/0 AWG Solid (Copper/Copperweld), 4/0 AWG Stranded (Aluminum/Copper), 1/2 Inch (Steel) Max. Run Conductor Size; 6 AWG (Acsr/Aaac/5005), 6 AWG Solid (Copper/Copperweld), 6 AWG Stranded (Aluminum/Copper), 5/32 Inch (Steel) min. Tap Conductor Size; 4/0 AWG (Acsr/Aaac/5005), 4/0 AWG Solid (Copper/Copperweld), 4/0 AWG Stranded (Aluminum/Copper), 1/2 Inch (Steel) Max. Tap Conductor Size; Peened Bolt With Spacer Installation; Aluminum/Copper/Acsr/Aaac/5005/Copperweld/Steel Conductor Material; CSA Approval; OKLIP[TM] Brand; RoHS Compatible; Size 1-1/8 Inch L X 1-3/
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810081808
• SKU Name: bur kvsu28
