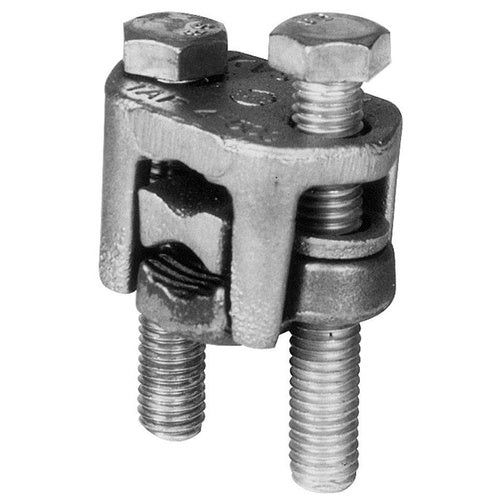

Burndy KVSW40 800 Copper 2-Bolt Service Entrance Compression Connector

Overview

Burndy KVSW40 800 Copper 2-Bolt Service Entrance Compression Connector

Product Specifications

• UPC: 78181006780
• Maximum Tap Conductor Size: 800 KCMIL
• Material: High Strength Copper Alloy Body, Durium Silicon Bronze Hardware
• Additional Information: RoHS Compatible; Installation Torque 500 Lb-Inch
• Catalog Number: KVSW40
• Brand Name: OKLIP[TM]
• Model: KVSW
• Installation: Longer Peened Bolt with Spacer
• Conductor Material: Copper/Copperweld
• Minimum Run Conductor Size: 400 KCMIL
• Maximum Run Conductor Size: 800 KCMIL
• Minimum Tap Conductor Size: 4/0 AWG
• Catalog Description: MECHANICAL CONNECTOR FOR CUWELD AND COPPER SUPPLIED WITH A CU ALLOY SPACER THAT SEPERATES RUN AND TAP CONDUCTORS, RECOMMENDED TORQUE: 500 LBS.
• Category: Large Terminals & Connectors
• Full Technical Description: High Strength Copper Alloy Body, Durium Silicon Bronze Hardware Material; 400 kcmil min. Run Conductor Size; 800 kcmil Max. Run Conductor Size; 4/0 AWG min. Tap Conductor Size; 800 kcmil Max. Tap Conductor Size; Longer Peened Bolt With Spacer Installation; Copper/Copperweld Conductor Material; OKLIP[TM] Brand; RoHS Compatible; Installation Torque 500 lb-Inch; KVSW Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810067802
• SKU Name: bur kvsw40

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
