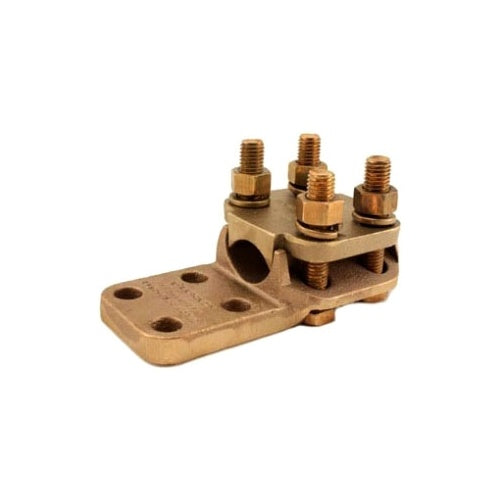

Burndy NAH44-2N Copper Terminal, 4/0 Str -750 KCMIL

Overview

Burndy NAH44-2N Copper Terminal, 4/0 Str -750 KCMIL

Product Specifications

• UPC: 78181000228
• Pad Size: 3 Inch L x 2 Inch W x 0.31 Inch Thk
• Stud Size: 0.56 Inch
• Overall Length: 6.88 Inch
• Material: Copper Alloy
• Additional Information: RoHS Compatible
• Catalog Number: NAH442N
• Model: NAH
• Conductor Material: Copper
• Number Of Conductors: 1
• Minimum Conductor Size: 4/0 AWG Stranded
• Maximum Conductor Size: 1000 KCMIL
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Catalog Description: COPPER BOLTED TERMINAL , CABLE TO FLAT , 4/0 AWG(STR)-1000 KCMIL CU CABLE , 2 PAD HOLES , 230 KV.
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Alloy Material; 6.88 Inch Overall Length; 4/0 AWG Stranded min. Conductor Size; 1000 kcmil Max. Conductor Size; Copper Conductor Material; 1 Conductor(S); 0.56 Inch Stud Size; 3 Inch L X 2 Inch W X 0.31 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; RoHS Compatible; NAH Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Substation Cable Terminal
• Unspsc: 39121456
• UPC 12 Digit: 781810002285
• SKU Name: bur nah442n

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
