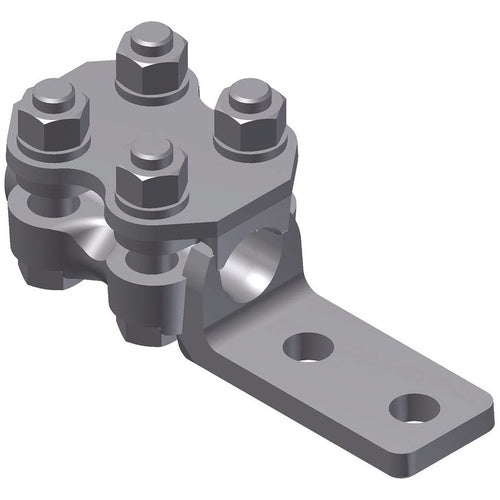

Burndy NAR29A-2N Aluminum Terminal 1/0 - 250 KCMIL

Overview

Burndy NAR29A-2N Aluminum Terminal 1/0 - 250 KCMIL

Product Specifications

• UPC: 78181000381
• Pad Size: 3 Inch L x 1-5/8 Inch W x 5/16 Inch Thk
• Stud Size: 9/16 Inch
• Overall Length: 6-1/8 Inch
• Material: Aluminum Alloy
• Additional Information: RoHS Compatible
• Catalog Number: NAR29A2N
• Model: NAR
• Conductor Material: Aluminum/Copper/ACSR
• Number Of Conductors: 1
• Minimum Conductor Size: 1/0 AWG Stranded (Aluminum/Copper), 1 AWG (ACSR)
• Maximum Conductor Size: 1/0 AWG Stranded (Aluminum/Copper), 1 AWG (ACSR)
• Number Of Pad Holes: 2 NEMA
• Pad Hole Spacing: 1-3/4 Inch
• Catalog Description: ALUMINIUM BOLTED TERMINAL, CABLE TO FLAT, 1/0 AWG-250 KCMIL AL/CU CABLE, 1/0-4/0 AWG ACSR, 2 PAD HOLES, 230 KV.
• Category: Large Terminals & Connectors
• Full Technical Description: Aluminum Alloy Material; 6-1/8 Inch Overall Length; 1/0 AWG Stranded (Aluminum/Copper), 1 AWG (ACSR) min. Conductor Size; 1/0 AWG Stranded (Aluminum/Copper), 1 AWG (ACSR) Max. Conductor Size; Aluminum/Copper/Acsr Conductor Material; 1 Conductor(S); 9/16 Inch Stud Size; 3 Inch L X 1-5/8 Inch W X 5/16 Inch Thk Pad Size; 2 NEMA Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; RoHS Compatible; NAR Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Substation Cable Terminal
• Unspsc: 39121456
• UPC 12 Digit: 781810003817
• SKU Name: bur nar29a2n

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
