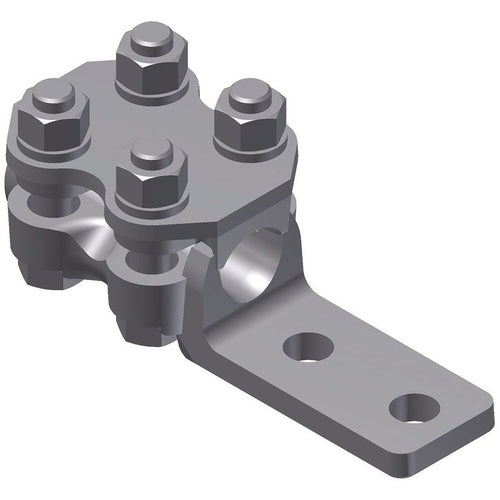

Burndy NAR36A-2N Aluminum Terminal 350-600, 2-Hole

Overview

Burndy NAR36A-2N Aluminum Terminal 350-600, 2-Hole

Product Specifications

• UPC: 78181000384
• Pad Size: 3 Inch L x 1-3/4 Inch W x 3/8 Inch Thk
• Stud Size: 9/16 Inch
• Overall Length: 6-5/8 Inch
• Material: Aluminum Alloy
• Additional Information: RoHS Compatible
• Catalog Number: NAR36A2N
• Model: NAR
• Conductor Material: Aluminum/Copper/ACSR
• Number Of Conductors: 1
• Minimum Conductor Size: 350 KCMIL (Aluminum/Copper), 336.4 KCMIL (ACSR)
• Maximum Conductor Size: 350 KCMIL (Aluminum/Copper), 336.4 KCMIL (ACSR)
• Number Of Pad Holes: 2 NEMA
• Pad Hole Spacing: 1-3/4 Inch
• Catalog Description: TERMINAL, 350 - 600 KCMIL AL/CU 336.4 - 477 KCMIL ACSR , 2 PAD HOLES, 6-5/8 IN LENGTH, CABLE TO FLAT.
• Category: Large Terminals & Connectors
• Full Technical Description: Aluminum Alloy Material; 6-5/8 Inch Overall Length; 350 kcmil (Aluminum/Copper), 336.4 kcmil (ACSR) min. Conductor Size; 350 kcmil (Aluminum/Copper), 336.4 kcmil (ACSR) Max. Conductor Size; Aluminum/Copper/Acsr Conductor Material; 1 Conductor(S); 9/16 Inch Stud Size; 3 Inch L X 1-3/4 Inch W X 3/8 Inch Thk Pad Size; 2 NEMA Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; RoHS Compatible; NAR Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Substation Cable Terminal
• Unspsc: 39121456
• UPC 12 Digit: 781810003848
• SKU Name: bur nar36a2n

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
