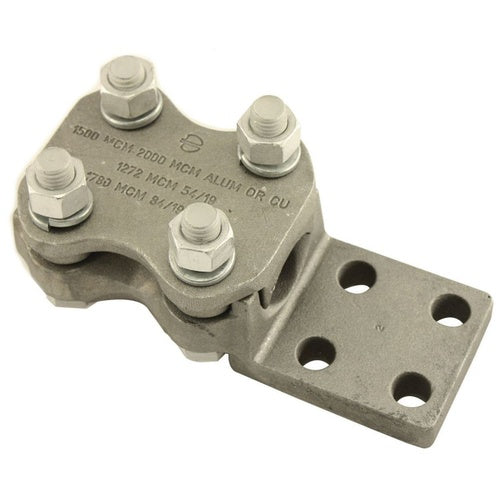

Burndy NAR42A-4N Aluminum Terminal 600-900

Overview

Burndy NAR42A-4N Aluminum Terminal 600-900

Product Specifications

• UPC: 78181000387
• Pad Size: 3 Inch L x 3 Inch W x 1/2 Inch Thk
• Stud Size: 9/16 Inch
• Overall Length: 6-7/8 Inch
• Material: Aluminum Alloy
• Additional Information: RoHS Compatible
• Catalog Number: NAR42A4N
• Model: NAR
• Conductor Material: Aluminum/Copper/ACSR
• Number Of Conductors: 1
• Minimum Conductor Size: 600 KCMIL (Aluminum/Copper), 477 KCMIL (ACSR)
• Maximum Conductor Size: 600 KCMIL (Aluminum/Copper), 477 KCMIL (ACSR)
• Number Of Pad Holes: 4 NEMA
• Pad Hole Spacing: 1-3/4 Inch
• Catalog Description: AL BOLTED TERMINAL, CABLE TO FLAT, 600-900 KCMIL(AL/CU),477-795 KCMIL(ACSR), 4 NEMA PAD HOLES.
• Category: Large Terminals & Connectors
• Full Technical Description: Aluminum Alloy Material; 6-7/8 Inch Overall Length; 600 kcmil (Aluminum/Copper), 477 kcmil (ACSR) min. Conductor Size; 600 kcmil (Aluminum/Copper), 477 kcmil (ACSR) Max. Conductor Size; Aluminum/Copper/Acsr Conductor Material; 1 Conductor(S); 9/16 Inch Stud Size; 3 Inch L X 3 Inch W X 1/2 Inch Thk Pad Size; 4 NEMA Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; RoHS Compatible; NAR Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Substation Cable Terminal
• Unspsc: 39121456
• UPC 12 Digit: 781810003879
• SKU Name: bur nar42a4n

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
