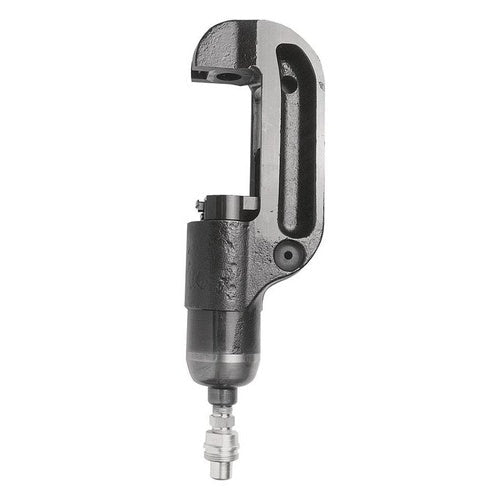

Burndy Y45 15-Ton Remote Hyd Head

Overview

Burndy Y45 15-Ton Remote Hyd Head

Product Specifications

• UPC: 78181062515
• Cable Size: 8 AWG Solid to 500 KCMIL (Copper, Tension Sleeve), 6 AWG Solid to 954 KCMIL (Aluminum, Tension Sleeve), 14 AWG to 954 KCMIL (Aluminum, Tap), 6 AWG to 795 KCMIL (ACSR, Tap), 6 AWG Stranded to 1500 KCMIL (Copper, Aerial Cable), 4 AWG Stranded to 1000 KCMIL
• Length: 15.25 Inch
• Width: 7-1/4 Inch
• Jaw Opening: 4.27 Inch
• Carrying Case Included: No
• Additional Information: RoHS Compatible; Height 14.25 Inch
• Catalog Number: Y45
• Brand Name: HYPRESS[TM]
• Type: C Shaped
• Terminal/Splice Type: Tension Sleeve, Tap, Splice
• Crimping Force: 15 Ton
• Operating Pressure: 10000 PSI
• Die Options: U Die
• Die Included: Yes
• Catalog Description: 15T REMOTE C-HEAD CRIMPER, 10000 PSI, USES S DIES.
• Category: Crimpers
• Full Technical Description: C Shaped Type; 15.25 Inch; 7-1/4 Inch; 8 AWG Solid to 500 kcmil (Copper, Tension Sleeve), 6 AWG Solid to 954 kcmil (Aluminum, Tension Sleeve), 14 AWG to 954 kcmil (Aluminum, Tap), 6 AWG to 795 kcmil (ACSR, Tap), 6 AWG Stranded to 1500 kcmil (Copper, Aerial Cable), 4 AWG Stranded to 1000 kcmil (Aluminum, Aerial Cable) Cable Size; 10000 psi Operating Pressure; Yes Die Included; 4.27 Inch Jaw Opening; 15 Ton Crimping Force; Tension Sleeve, Tap, Splice Terminal/Splice Type; U Die Die Options; No Carrying Case Included; RoHS Compatible; Height 14.25 Inch
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Hydraulic Crimping Tool Head
• Unspsc: 27121812
• UPC 12 Digit: 781810625156
• SKU Name: bur y45

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
