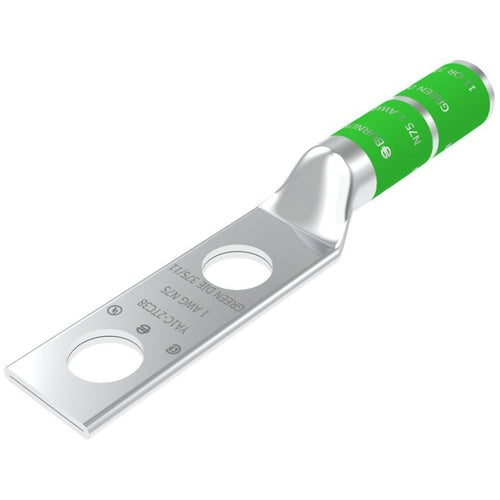

Burndy YA1C2TC14 1Str Copper 2-Hole Long Lug

Overview

Burndy YA1C2TC14 1Str Copper 2-Hole Long Lug

Product Specifications

• Catalog Description: 1 AWG CU, TWO HOLE, 1/4 STUD SIZE, 5/8 HOLE SPACING, LONG BARREL INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, GREEN COLOR CODE, 11 OR 375 DIE INDEX.
• Full Technical Description: Electro-Tin Plated Copper Material; Green Color; 3.03 Inch Overall Length; 1.38 Inch Barrel Length; Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 1 AWG Solid/Stranded (Code) Conductor Size; 1/4 Inch Stud Size; 11/375 Die Index; 0.67 Inch W X 0.1 Inch Thk Pad Size; 2 Pad Hole(S); 5/8 Inch Pad Hole Spacing; Long, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 1-7/16 Inch; Cable Entry Type Beveled Entry, Chamfered; YA-2TC Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• UPC 12 Digit: 781810019771
• SKU Name: bur ya1c2tc14

Resources

• Manufacturer Spec Sheet
