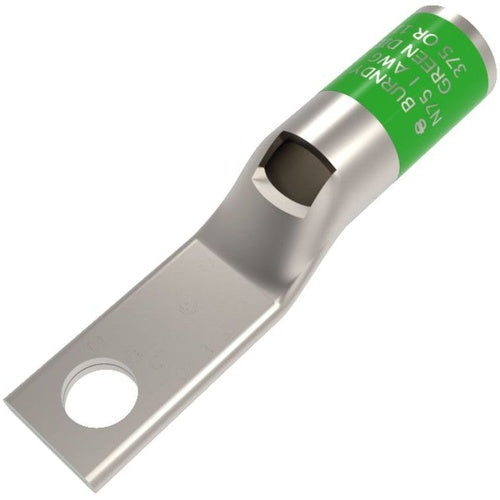

Burndy YA1CL-NT14 1Str Copper 1-Hole, Nar Tong

Overview

Burndy YA1CL-NT14 1Str Copper 1-Hole, Nar Tong

Product Specifications

• UPC: 78181001850
• Pad Size: 0.5 INCH W X 0.1 INCH THK
• Number Of Pad Holes: 1
• Stud Size: 1/4 INCH
• Color: GREEN
• Die Index: 11
• Material: ELECTRO TIN PLATED COPPER
• Overall Length: 2.23 INCH
• Approval: UL, CSA
• Additional Information: ROHS COMPATIBLE; CABLE ENTRY TYPE BEVELED, CHAMFERED; WIRE STRIP LENGTH 15/16 INCH; TEMPERATURE RATING 90 DEG C
• Catalog Number: YA1CLNT14
• Brand Name: HYLUG[T], BURNDY[R]
• Model: YA-L-NT
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 1 AWG STRANDED
• Barrel Type: NARROW, STANDARD, STRAIGHT
• Barrel Length: 0.88 INCH
• Catalog Description: 1 AWG CU, ONE HOLE, 1/4 STANDARD BARREL, INSPECTION WINDOW, NARROW TONGUE INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, GREEN COLOR CODE, 11 OR 375 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Green Color; 2.23 Inch Overall Length; 0.88 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 1 AWG Stranded Conductor Size; 1/4 Inch Stud Size; 11 Die Index; 0.5 Inch W X 0.1 Inch Thk Pad Size; 1 Pad Hole(S); Narrow, Standard, Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Cable Entry Type Beveled, Chamfered; Wire Strip Length 15/16 Inch; Temperature Rating 90 Deg C; YA-L-NT Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810018507
• SKU Name: bur ya1clnt14
