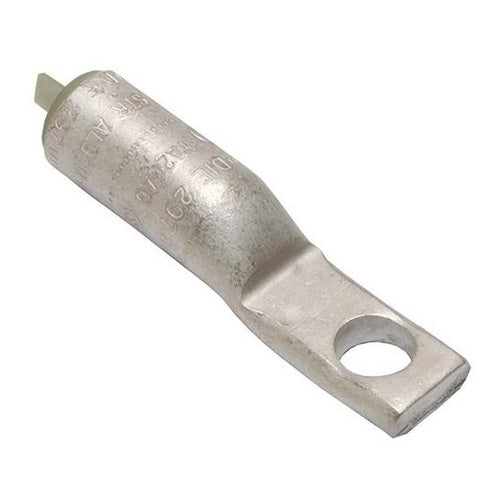

Burndy YA25A1 1/0Awg Aluminum/Copper 1-Hole Lug

Overview

Burndy YA25A1 1/0Awg Aluminum/Copper 1-Hole Lug

Product Specifications

• Catalog Description: AL TERMINAL, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX A13, END CAP, UL/CSA, 90C, UP TO 35KV, COLOR CODE, DIE INDEX.
• Full Technical Description: Electro-Tin Plated Wrought Aluminum Material; Tan Color; 2.31 Inch Overall Length; 1 Inch Barrel Length; Aluminum/Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 1/0 AWG (Aluminum), 1/0 AWG Stranded (Copper) Conductor Size; 5/16 Inch Stud Size; 296 Die Index; 0.6 Inch W X 0.21 Inch Thk Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window, Color Coded Cap; Temperature Rating 90 Deg C; Wire Strip Length 1-1/16 Inch; YA-A Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• UPC 12 Digit: 781810752852
• SKU Name: bur ya25a1

Resources

• Manufacturer Spec Sheet
