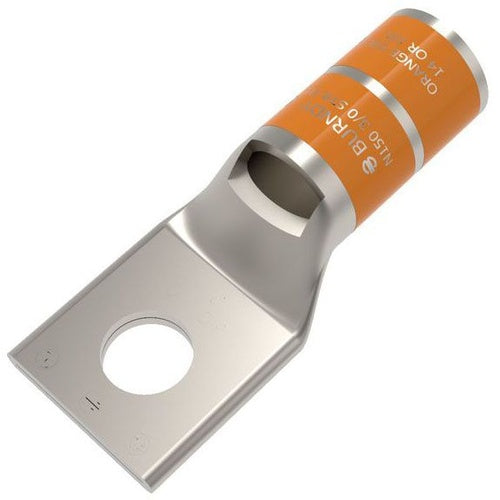

Burndy YA27-L4BOX 1-Hole 3/0 Copper Compression Lug

Overview

Burndy YA27-L4BOX 1-Hole 3/0 Copper Compression Lug

Product Specifications

• UPC: 78181055400
• Pad Size: 0.91 Inch Width x 0.13 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: 3/8 Inch
• Color: Orange
• Die Index: 14
• Material: Electro Tin Plated Copper
• Overall Length: 2.29 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 1-1/16 Inch; Temperature Rating 90 Deg C; With Inspection Window
• Catalog Number: YA27L4BOX
• Brand Name: HYLUG[TM], HYDENT[TM]
• Model: YA-L
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 3/0 AWG Stranded (Code), 150 (Navy)
• Barrel Type: Standard, Straight, Non-Insulated
• Barrel Length: 1 Inch
• Catalog Description: 3/0 AWG CU, ONE HOLE, 3/8 STUD SIZE, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA 90 UP TO 35KV, ORANGE COLOR CODE, 14 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Orange Color; 2.29 Inch Overall Length; 1 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 3/0 AWG Stranded (Code), 150 (Navy) Conductor Size; 3/8 Inch Stud Size; 14 Die Index; 0.91 Inch Width X 0.13 Inch Thickness Pad Size; 1 Pad Hole(S); Standard, Straight, Non-Insulated Barrel Type; Hylug , Hydent Brand; RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 1-1/16 Inch; Temperature Rating 90 Deg C; With Inspection Window; YA-L Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810554005
• SKU Name: bur ya27l4box
