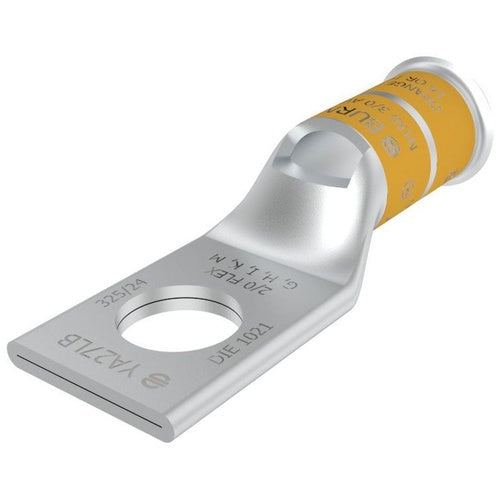

Burndy YA27-LB 2/0Astm Copper 1-Hole Lug

Overview

Burndy YA27-LB 2/0Astm Copper 1-Hole Lug

Product Specifications

• UPC: 78181050332
• Pad Size: 0.91 Inch W x 0.12 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Orange
• Die Index: 1021
• Material: Electro-Tin Plated Copper
• Overall Length: 2.61 Inch
• Approval: UL 468A/468B, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-1/16 Inch
• Catalog Number: YA27LB
• Brand Name: HYLUG[TM]
• Model: YA-LB
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 150 (Navy), 325/24 Diesel Locomotive Cable, 2/0 AWG (Flex), 3/0 AWG Solid/Stranded
• Barrel Type: Short, Belled, Standard, Straight
• Barrel Length: 0.99 Inch
• Catalog Description: 3/0 AWG, 2/0 FLEXG,H,I,K,MDLO CU, ONE HOLE, 1/2 STUD SIZE, STANDARD BARREL, BELL END, TIN PLATED, UL/CSA, 90C, UP TO 35KV, ORANGE COLOR CODE, 14 CODE1021 FLEX DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Orange Color; 2.61 Inch Overall Length; 0.99 Inch Barrel Length; Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 150 (Navy), 325/24 Diesel Locomotive Cable, 2/0 AWG (Flex), 3/0 AWG Solid/Stranded Conductor Size; 1/2 Inch Stud Size; 1021 Die Index; 0.91 Inch W X 0.12 Inch Thk Pad Size; 1 Pad Hole(S); Short, Belled, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-1/16 Inch; YA-LB Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810503324
• SKU Name: bur ya27lb
