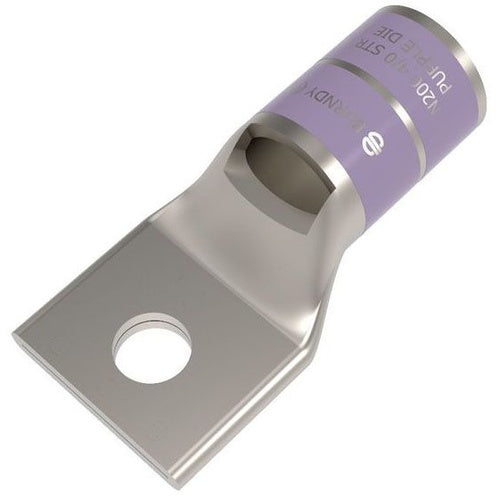

Burndy YA28L56 4/0Awg Terminal Lug

Overview

Burndy YA28L56 4/0Awg Terminal Lug

Product Specifications

• Catalog Description: 4/0 AWG CU, ONE HOLE, 3/4 STUD SIZE, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA 90 UP TO 35KV, PURPLE COLOR CODE, 15 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Purple Color; 2.9 Inch Overall Length; 0.88 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 200 (Navy), 4/0 AWG Stranded (Code) Conductor Size; 3/4 Inch Stud Size; 15 Die Index; 1.05 Inch W X 0.13 Inch Thk Pad Size; 1 Pad Hole(S); Short, Skived, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-1/8 Inch; Cable Entry Type Beveled Entry, Chamfered; YA-L Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810017920
• SKU Name: bur ya28l56

Resources

• Technical Line Drawing
• Manufacturer Spec Sheet
