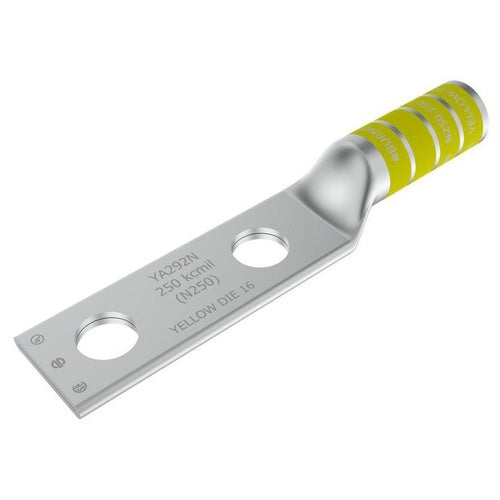

Burndy YA292TC38 Copper Hylg-250Mcm

Overview

Burndy YA292TC38 Copper Hylg-250Mcm

Product Specifications

• UPC: 78181001812
• Pad Size: 1.1 Inch W x 0.16 Inch Thk
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1 Inch
• Stud Size: 3/8 Inch
• Color: Yellow
• Die Index: 16
• Material: Electro-Tin Plated Copper
• Overall Length: 4.02 Inch
• Approval: UL 468A/468B, CSA
• Additional Information: RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 1-11/16 Inch; Cable Entry Type Beveled Entry, Chamfered
• Catalog Number: YA292TC38
• Brand Name: HYLUG[TM]
• Model: YA-2TC
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 250 KCMIL Solid/Stranded (Code)
• Barrel Type: Long, Standard, Straight
• Barrel Length: 1.62 Inch
• Catalog Description: 250 KCMIL CU, TWO HOLE, 3/8 STUD SIZE, 1 HOLE SPACING, LONG BARREL INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, YELLOW COLOR CODE, 16 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Yellow Color; 4.02 Inch Overall Length; 1.62 Inch Barrel Length; Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 250 kcmil Solid/Stranded (Code) Conductor Size; 3/8 Inch Stud Size; 16 Die Index; 1.1 Inch W X 0.16 Inch Thk Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Long, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 1-11/16 Inch; Cable Entry Type Beveled Entry, Chamfered; YA-2TC Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810018125
• SKU Name: bur ya292tc38
