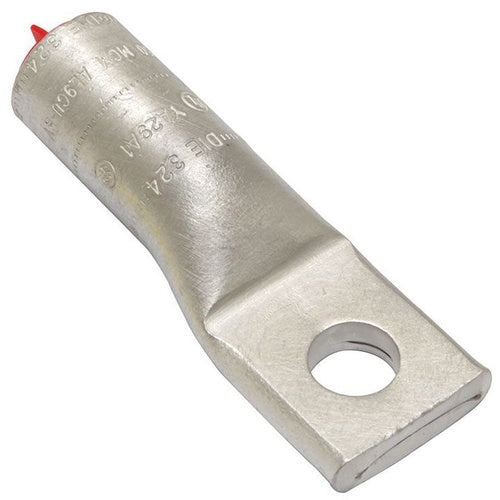

Burndy YA29A1 250Mcm Aluminum/Copper 1-Hole Lug

Overview

Burndy YA29A1 250Mcm Aluminum/Copper 1-Hole Lug

Product Specifications

• UPC: 78181075510
• Pad Size: 1.26 Inch W x 0.33 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Red
• Die Index: 324
• Material: Electro-Tin Plated Wrought Aluminum
• Overall Length: 3.53 Inch
• Approval: UL 468A/468B, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window, Color Coded Cap; Temperature Rating 90 Deg C; Wire Strip Length 1-5/8 Inch
• Catalog Number: YA29A1
• Brand Name: HYLUG[TM]
• Model: YA-A
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Aluminum/Copper
• Conductor Size: 250 KCMIL (Aluminum), 250 KCMIL Stranded (Copper)
• Barrel Type: Short, Standard, Straight
• Barrel Length: 1.45 Inch
• Catalog Description: 250 KCMIL, AL TERMINAL, ONE HOLE, 1/2", STUD SIZE, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, RED COLOR CODE, 324 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Wrought Aluminum Material; Red Color; 3.53 Inch Overall Length; 1.45 Inch Barrel Length; Aluminum/Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 250 kcmil (Aluminum), 250 kcmil Stranded (Copper) Conductor Size; 1/2 Inch Stud Size; 324 Die Index; 1.26 Inch W X 0.33 Inch Thk Pad Size; 1 Pad Hole(S); Short, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window, Color Coded Cap; Temperature Rating 90 Deg C; Wire Strip Length 1-5/8 Inch; YA-A Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810755105
• SKU Name: bur ya29a1
