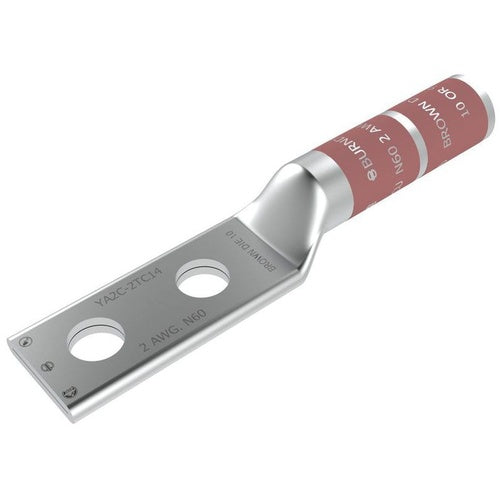

Burndy YA2C-2N 2Awg Copper 2-Hole Lug

Overview

Burndy YA2C-2N 2Awg Copper 2-Hole Lug

Product Specifications

• UPC: 78181050086
• Pad Size: 0.83 Inch Width x 0.12 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Color: Brown
• Die Index: 10
• Material: Electro-Tin Plated Copper
• Overall Length: 4.64 Inch
• Approval: UL 468A/B, CSA, UL
• Additional Information: RoHS Compliant; Wire Strip Length 1-5/16 Inch; Cable Entry Type Beveled; Temperature Rating 90 Deg C
• Catalog Number: YA2C2N
• Brand Name: HYLUG[TM]
• Model: YA-2N
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 2 AWG (Stranded), 60 (37) Navy
• Barrel Type: Long, Standard, Straight, Chamfered
• Barrel Length: 1.25 Inch
• Catalog Description: 2 AWG CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, LONG BARREL INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BROWN COLOR CODE, 10 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Brown Color; 4.64 Inch Overall Length; 1.25 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 2 AWG Stranded (Code), 60 (Navy) Conductor Size; 1/2 Inch Stud Size; 10 Die Index; 0.83 Inch Width X 0.12 Inch Thickness Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Long, Straight Barrel Type; Hylug , Hydent Brand; RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 1-5/16 Inch; Temperature Rating 90 Deg C; Less Inspection Window; YA-2N Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810500866
• SKU Name: bur ya2c2n

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
