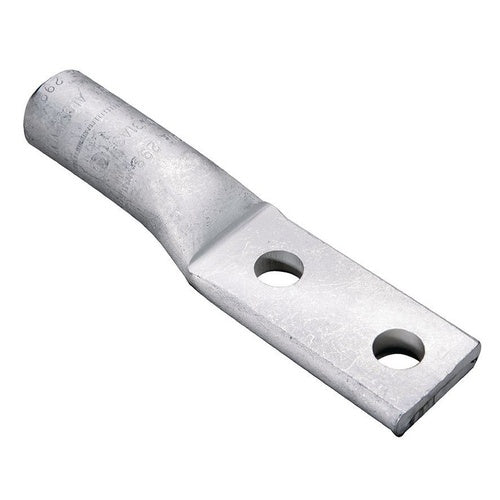

Burndy YA2CA9 2 Str Aluminum 2-Hole 1/2

Overview

Burndy YA2CA9 2 Str Aluminum 2-Hole 1/2

Product Specifications

• UPC: 78181003673
• Pad Size: 0.88 Inch W x 0.16 Inch Thk
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Pink
• Die Index: 348
• Material: Electro-Tin Plated Wrought Aluminum
• Overall Length: 4.73 Inch
• Approval: UL 468A/468B, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-1/8 Inch; Cable Entry Type Beveled Entry
• Catalog Number: YA2CA9
• Brand Name: HYLUG[TM]
• Model: YA-A
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Aluminum/Copper
• Conductor Size: 2 AWG (Aluminum), 2 AWG Stranded (Copper)
• Barrel Type: Standard, Straight
• Barrel Length: 1.12 Inch
• Catalog Description: 2 AWG, AL TERMINAL, TWO HOLE, 1/2" STUD SIZE, 1-3/4" HOLE SPACING, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, PINK COLOR CODE, 348 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Size Image: h
• Full Technical Description: Electro-Tin Plated Wrought Aluminum Material; Pink Color; 4.73 Inch Overall Length; 1.12 Inch Barrel Length; Aluminum/Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 2 AWG (Aluminum), 2 AWG Stranded (Copper) Conductor Size; 1/2 Inch Stud Size; 348 Die Index; 0.88 Inch W X 0.16 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-1/8 Inch; Cable Entry Type Beveled Entry; YA-A Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810036730
• SKU Name: bur ya2ca9

Resources

• Technical Line Drawing
• Manufacturer Spec Sheet
