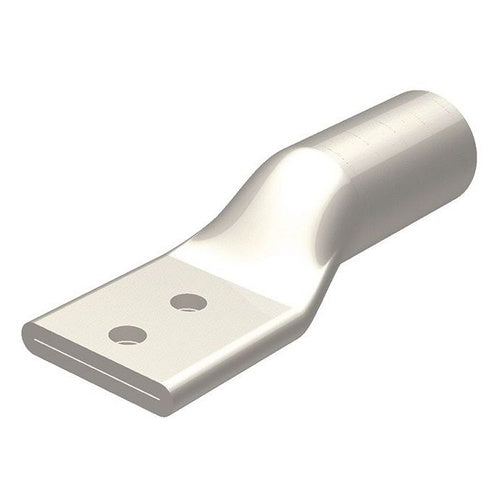

Burndy YA30A3 300Mcm Aluminum/Copper 2-Hole Lug

Overview

Burndy YA30A3 300Mcm Aluminum/Copper 2-Hole Lug

Product Specifications

• UPC: 78181075540
• Pad Size: 1.38 Inch Width x 0.36 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Blue
• Die Index: 470
• Material: Electro Tin Plated Wrought Aluminum
• Overall Length: 5.64 Inch
• Approval: UL 468A/468B, CSA
• Additional Information: ROHS COMPATIBLE; WIRE STRIP LENGTH 1 3/4 INCH; TEMPERATURE RATING 90 DEG C
• Catalog Number: YA30A3
• Brand Name: HYLUG[TM]
• Model: YA-A
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper/Aluminum
• Conductor Size: 300 KCMIL Stranded (Code)
• Barrel Type: Standard, Straight
• Barrel Length: 1.53 Inch
• Catalog Description: 300 KCMIL , AL TERMINAL, TWO HOLE, 1/2" STUD SIZE, 1-3/4" HOLE SPACING, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, BLUE COLOR CODE, 470 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Aluminum Material; Blue Color; 5.64 Inch Overall Length; 1.53 Inch Barrel Length; Copper/Aluminum Conductor Material; UL 468A/468B, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 300 kcmil Stranded (Code) Conductor Size; 1/2 Inch Stud Size; 470 Die Index; 1.38 Inch Width X 0.36 Inch Thickness Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Wire Strip Length 1 3/4 Inch; Temperature Rating 90 Deg C; YA-A Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810755402
• SKU Name: bur ya30a3

Resources

• Technical Line Drawing
• Manufacturer Spec Sheet
