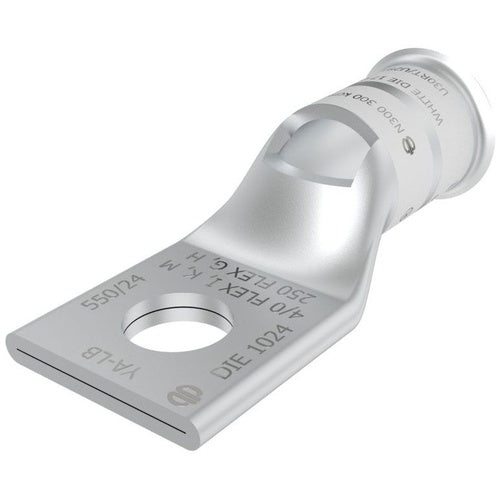

Burndy YA30-LB 250Astm Copper 1-Hole Lug

Overview

Burndy YA30-LB 250Astm Copper 1-Hole Lug

Product Specifications

• Catalog Description: 300 KCMIL, 250 KCMIL G & H 4/0 FLEX I,K,M DLO CU, ONE HOLE, 1/2 STUD SIZE, STANDARD BARREL, BELL END, TIN PLATED, UL/CSA, 90C, UP TO 35KV, WHITE COLOR CODE, 17 CODE 1024 FLEX DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; White Color; 2.82 Inch Overall Length; 1.04 Inch Barrel Length; Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 300 (Navy), 550/24 Diesel Locomotive Cable, 4/0 AWG Class I/M (Flex), 250 kcmil Class G/H (Flex), 300 kcmil Stranded Conductor Size; 1/2 Inch Stud Size; 1024 Die Index; 1.2 Inch W X 0.16 Inch Thk Pad Size; 1 Pad Hole(S); Short, Belled, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-1/8 Inch; YA-LB Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810504871
• SKU Name: bur ya30lb

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
