Burndy YA31-LB 250Astm Copper 1-Hole Lug

Overview

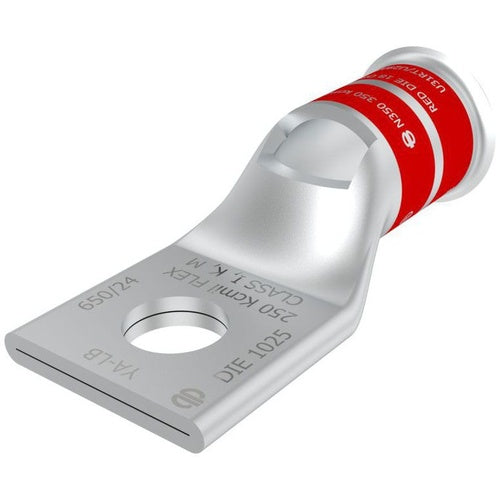

Burndy YA31-LB 250Astm Copper 1-Hole Lug

Product Specifications

• Catalog Description: 350 KCMIL, 250 FLEX I,K,M 262 DLO CU, ONE HOLE, 1/2 STUD SIZE, STANDARD BARREL, BELL END, TIN PLATED, UL/CSA, 90C, UP TO 35KV, RED COLOR CODE, 18 CODE 1025 FLEX DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Red Color; 2.93 Inch Overall Length; 1.29 Inch Barrel Length; Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 350 (Navy), 650/24 Diesel Locomotive Cable, 250 kcmil Class I/M (Flex), 262.2 kcmil (Flex), 250 kcmil Stranded Conductor Size; 1/2 Inch Stud Size; 1025 Die Index; 1.29 Inch W X 0.18 Inch Thk Pad Size; 1 Pad Hole(S); Short, Belled, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-3/16 Inch; YA-LB Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810504963
• SKU Name: bur ya31lb

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
