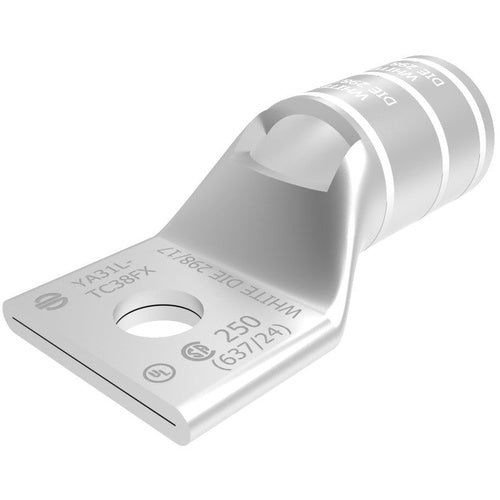

Burndy YA31LTC38FX 262.2Mcm Copper HYLUG

Overview

Burndy YA31LTC38FX 262.2Mcm Copper HYLUG

Product Specifications

• UPC: 78181002025
• Pad Size: 1.29 Inch W x 0.18 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 3/8 Inch
• Color: White
• Die Index: 17/298
• Material: Electro-Tin Plated Copper
• Overall Length: 2.5 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-1/8 Inch; Cable Entry Type Chamfered
• Catalog Number: YA31LTC38FX
• Brand Name: HYLUG[TM]
• Model: YA-L-FX
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 637/24 Class I/K/M, 250 KCMIL Class I (Flex)
• Barrel Type: Skived, Standard, Straight
• Barrel Length: 1.06 Inch
• Catalog Description: 250 KCMIL I, K, M, 262 DLO CU, ONE HOLE, 3/8 STUD SIZE, STANDARD BARREL, INSPECTION WINDOW INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, WHITE COLOR CODE, 17 OR 298 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; White Color; 2.5 Inch Overall Length; 1.06 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 637/24 Class I/K/M, 250 kcmil Class I (Flex) Conductor Size; 3/8 Inch Stud Size; 17/298 Die Index; 1.29 Inch W X 0.18 Inch Thk Pad Size; 1 Pad Hole(S); Skived, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-1/8 Inch; Cable Entry Type Chamfered; YA-L-FX Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810020258
• SKU Name: bur ya31ltc38fx

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
