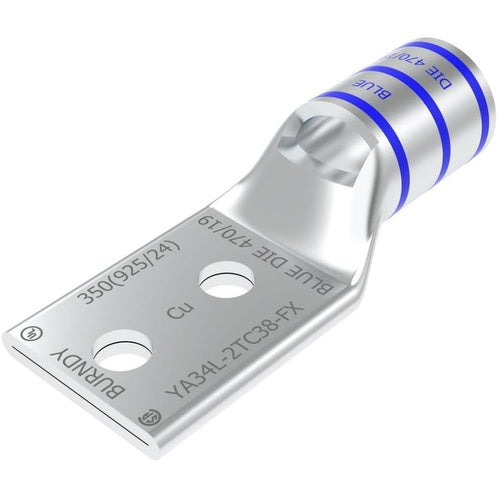

Burndy YA34L-2TC38-FX 500Mcm 2-Hole Lug

Overview

Burndy YA34L-2TC38-FX 500Mcm 2-Hole Lug

Product Specifications

• UPC: 78181001894
• Pad Size: 1.55 INCH W X 0.23 INCH THK
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1 INCH
• Stud Size: 3/8 INCH
• Color: BLUE
• Die Index: 19/470
• Material: ELECTRO TIN PLATED COPPER
• Overall Length: 3.88 INCH
• Approval: UL, CSA
• Additional Information: ROHS COMPATIBLE; CABLE ENTRY TYPE BEVELED, CHAMFERED; WIRE STRIP LENGTH 1 5/16 INCH; TEMPERATURE RATING 90 DEG C; WITH INSPECTION WINDOW
• Catalog Number: YA34L2TC38FX
• Brand Name: HYLUG[T], BURNDY[R]
• Model: YA-L-2TC-FX
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 925/24, 373.7 KCMIL (FLEX)
• Barrel Type: LONG, SKIVED, STANDARD, STRAIGHT
• Barrel Length: 1.27 INCH
• Catalog Description: 350 KCMIL G,H,I,K,M,373 DLO CU, TWO HOLE, 3/8 STUD SIZE, 1 HOLE SPACING, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BLUE COLOR CODE, 19 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Blue Color; 3.88 Inch Overall Length; 1.27 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 925/24, 373.7 kcmil (Flex) Conductor Size; 3/8 Inch Stud Size; 19/470 Die Index; 1.55 Inch W X 0.23 Inch Thk Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Long, Skived, Standard, Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Cable Entry Type Beveled, Chamfered; Wire Strip Length 1 5/16 Inch; Temperature Rating 90 Deg C; With Inspection Window; YA-L-2TC-FX Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810018941
• SKU Name: bur ya34l2tc38fx
