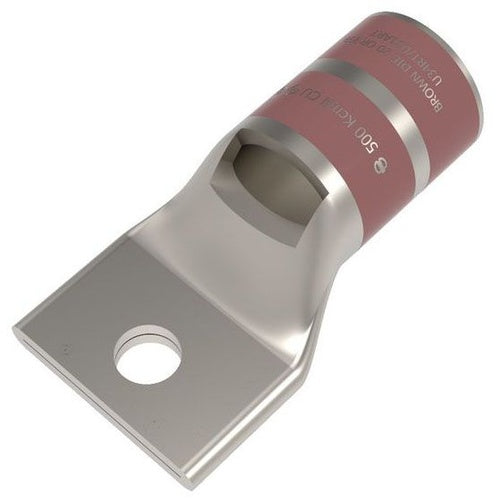

Burndy YA34L37 500 Copper 1-Hole Lug

Overview

Burndy YA34L37 500 Copper 1-Hole Lug

Product Specifications

• UPC: 78181001843
• Pad Size: 1.55 Inch W x 0.23 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 3/8 Inch
• Color: Brown
• Die Index: 20
• Material: Electro-Tin Plated Copper
• Overall Length: 2.87 Inch
• Approval: UL 467, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-7/16 Inch; Cable Entry Type Chamfered
• Catalog Number: YA34L37
• Brand Name: HYLUG[TM]
• Model: YA-L
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 500 KCMIL Stranded (Code)
• Barrel Type: Short, Skived, Standard, Straight
• Barrel Length: 1.27 Inch
• Catalog Description: 500 KCMIL CU, ONE HOLE, 3/8 STUD SIZE, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA 90 UP TO 35KV, BROWN COLOR CODE, 20 OR 299 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Brown Color; 2.87 Inch Overall Length; 1.27 Inch Barrel Length; Copper Conductor Material; UL 467, CSA Approval; 600 V to 35 kV Voltage Rating; 500 kcmil Stranded (Code) Conductor Size; 3/8 Inch Stud Size; 20 Die Index; 1.55 Inch W X 0.23 Inch Thk Pad Size; 1 Pad Hole(S); Short, Skived, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-7/16 Inch; Cable Entry Type Chamfered; YA-L Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810018439
• SKU Name: bur ya34l37
