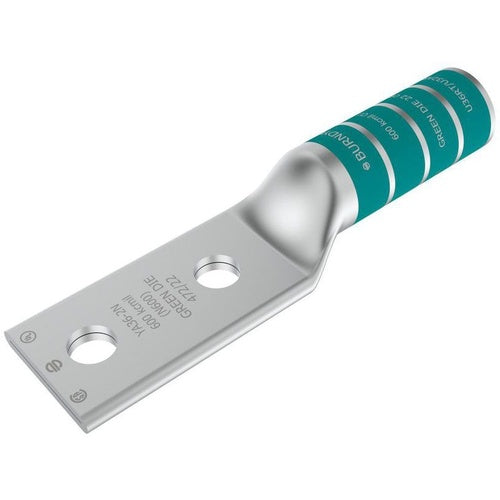

Burndy YA36-2N 600Mcm 2-Hole Lug

Overview

Burndy YA36-2N 600Mcm 2-Hole Lug

Product Specifications

• UPC: 78181052152
• Pad Size: 1.74 Inch Width x 0.27 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Color: Green
• Die Index: 22/472
• Material: Electro Tin Plated Copper
• Overall Length: 6.59 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 2-3/4 Inch; Temperature Rating 90 Deg C; Less Inspection Window
• Catalog Number: YA362N
• Brand Name: HYLUG[TM], HYDENT[TM]
• Model: YA-2N
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 600 KCMIL Stranded (Code)
• Barrel Type: Long, Straight
• Barrel Length: 2.69 Inch
• Catalog Description: 600 KCMIL CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, LONG BARREL INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, GREEN COLOR CODE, 22 OR 472 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Green Color; 6.59 Inch Overall Length; 2.69 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 600 kcmil Stranded (Code) Conductor Size; 1/2 Inch Stud Size; 22/472 Die Index; 1.74 Inch Width X 0.27 Inch Thickness Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Long, Straight Barrel Type; Hylug , Hydent Brand; RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 2-3/4 Inch; Temperature Rating 90 Deg C; Less Inspection Window; YA-2N Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810521526
• SKU Name: bur ya362n

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
