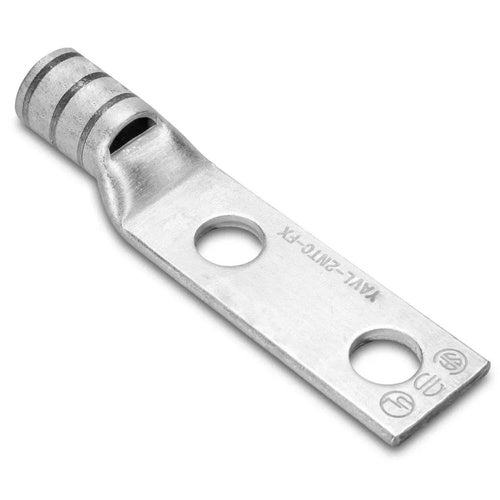

Burndy YA36L2NTCFX 600Mcm Terminal Lug

Overview

Burndy YA36L2NTCFX 600Mcm Terminal Lug

Product Specifications

• UPC: 78181002134
• Pad Size: 3.03 Inch Length x 1.74 Inch Width x 0.27 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Color: Brown
• Die Index: 20/299
• Material: Electro Tin Plated Copper
• Overall Length: 5.24 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 1-7/16 Inch; Temperature Rating 90 Deg C; With Inspection Window
• Catalog Number: YA36L2NTCFX
• Brand Name: HYLUG[TM]
• Model: YA-L-2TC-FX
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 450 KCMIL Flex (G/H/I), 444.4 KCMIL (DLO)
• Barrel Type: Standard, Straight
• Barrel Length: 1.38 Inch
• Catalog Description: 500 KCMIL G, H, 444 DLO CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BROWN COLOR CODE, 20 OR 299 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Brown Color; 5.24 Inch Overall Length; 1.38 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 450 kcmil Flex (G/H/I), 444.4 kcmil (Dlo) Conductor Size; 1/2 Inch Stud Size; 20/299 Die Index; 3.03 Inch Length X 1.74 Inch Width X 0.27 Inch Thickness Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 1-7/16 Inch; Temperature Rating 90 Deg C; With Inspection Window; YA-L-2TC-FX Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810021347
• SKU Name: bur ya36l2ntcfx

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
