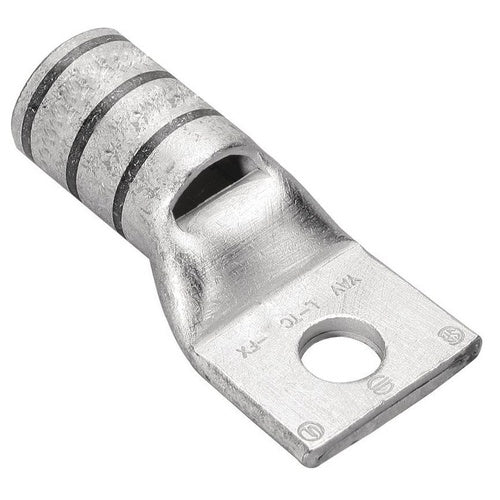

Burndy YA38L-TC58-FX 500Mcm 1-Hole Lug

Overview

Burndy YA38L-TC58-FX 500Mcm 1-Hole Lug

Product Specifications

• UPC: 78181002111
• Pad Size: 1.84 Inch Width x 0.27 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: 5/8 Inch
• Color: Pink
• Die Index: L99
• Material: Electro Tin Plated Copper
• Overall Length: 3.66 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 1-7/16 Inch; Temperature Rating 90 Deg C; With Inspection Window
• Catalog Number: YA38LTC58FX
• Brand Name: HYLUG[TM]
• Model: YA-L-FX
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 500 KCMIL (Flex), 550 KCMIL (Flex), 535.3 KCMIL (DLO)
• Barrel Type: Standard, Straight
• Barrel Length: 1.45 Inch
• Catalog Description: 500 KCMIL H,I,K / 550 KCMIL G,H,I,535 DLO CU, ONE HOLE, 5/8 STUD SIZE, STANDARD BARREL, INSPECTION WINDOW INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, PINK COLOR CODE, L99 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Pink Color; 3.66 Inch Overall Length; 1.45 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 500 kcmil (Flex), 550 kcmil (Flex), 535.3 kcmil (Dlo) Conductor Size; 5/8 Inch Stud Size; L99 Die Index; 1.84 Inch Width X 0.27 Inch Thickness Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 1-7/16 Inch; Temperature Rating 90 Deg C; With Inspection Window; YA-L-FX Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810021118
• SKU Name: bur ya38ltc58fx
