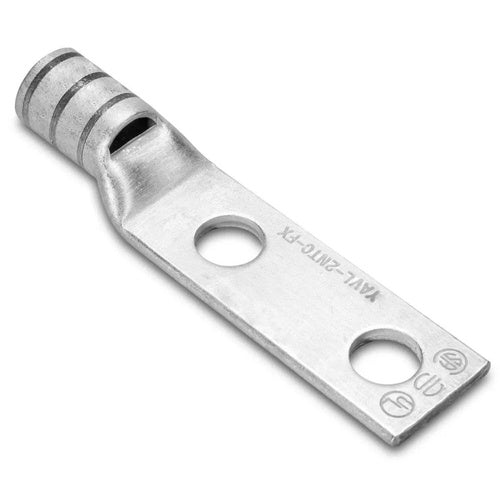

Burndy YA44L-2NTC-FX 750Mcm 2-Hole Lug

Overview

Burndy YA44L-2NTC-FX 750Mcm 2-Hole Lug

Product Specifications

• UPC: 78181002110
• Pad Size: 2.19 Inch Width x 0.33 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Yellow
• Die Index: L115
• Material: Electro Tin Plated Copper
• Overall Length: 5.74 Inch
• Approval: UL, CSA
• Additional Information: ROHS COMPATIBLE; CABLE ENTRY TYPE BEVELED, CHAMFERED; WIRE STRIP LENGTH 1 5/8 INCH; TEMPERATURE RATING 90 DEG C; WITH INSPECTION WINDOW
• Catalog Number: YA44L2NTCFX
• Brand Name: HYLUG[TM]
• Model: YA-L-2TC-FX
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 750 KCMIL (Flex), 1925/24 (Flex), 777.7 KCMIL Stranded (Code)
• Barrel Type: Short, Standard, Straight
• Barrel Length: 1.65 Inch
• Catalog Description: 750 KCMIL G,H,777 DLO CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, YELLOW COLOR CODE, L115 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Yellow Color; 5.74 Inch Overall Length; 1.65 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 750 kcmil (Flex), 1925/24 (Flex), 777.7 kcmil Stranded (Code) Conductor Size; 1/2 Inch Stud Size; L115 Die Index; 2.19 Inch Width X 0.33 Inch Thickness Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Short, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Cable Entry Type Beveled, Chamfered; Wire Strip Length 1 5/8 Inch; Temperature Rating 90 Deg C; With Inspection Window; YA-L-2TC-FX Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810021101
• SKU Name: bur ya44l2ntcfx

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
