Burndy YA44L-2TC38-FX Compression Terminal-750Mcm

Overview

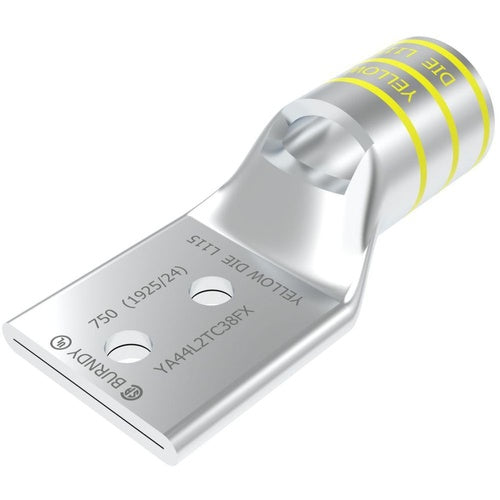

Burndy YA44L-2TC38-FX Compression Terminal-750Mcm

Product Specifications

• UPC: 78181002099
• Pad Size: 2.19 Inch W x 0.33 Inch Thk
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1 Inch
• Stud Size: 3/8 Inch
• Color: Yellow
• Die Index: L115
• Material: Electro-Tin Plated Copper
• Overall Length: 4.74 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-5/8 Inch; Cable Entry Type Beveled Entry, Chamfered
• Catalog Number: YA44L2TC38FX
• Brand Name: HYLUG[TM]
• Model: YA-L-2TC
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 1925/24 Diesel Locomotive Cable, 750 KCMIL Class G/H/I (Flex), 777.7 KCMIL, 750 KCMIL Stranded
• Barrel Type: Short, Standard, Straight
• Barrel Length: 1.65 Inch
• Catalog Description: 750 KCMIL G,H,777 DLO CU, TWO HOLE, 3/8 STUD SIZE, 1 HOLE SPACING, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, YELLOW COLOR CODE, L115 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Yellow Color; 4.74 Inch Overall Length; 1.65 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 1925/24 Diesel Locomotive Cable, 750 kcmil Class G/H/I (Flex), 777.7 kcmil, 750 kcmil Stranded Conductor Size; 3/8 Inch Stud Size; L115 Die Index; 2.19 Inch W X 0.33 Inch Thk Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Short, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-5/8 Inch; Cable Entry Type Beveled Entry, Chamfered; YA-L-2TC Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810020999
• SKU Name: bur ya44l2tc38fx

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
