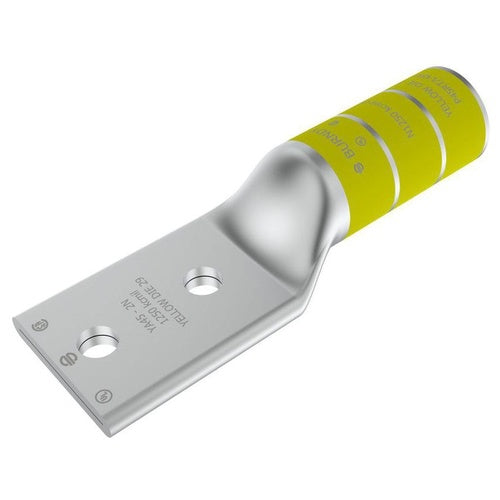

Burndy YA452N Hylg-1250KCMIL

Overview

Burndy YA452N Hylg-1250KCMIL

Product Specifications

• UPC: 78181052450
• Pad Size: 2.46 INCH W X 0.38 INCH THK
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1 3/4 INCH
• Stud Size: 1/2 INCH
• Color: YELLOW
• Die Index: 293
• Material: ELECTRO TIN PLATED COPPER
• Overall Length: 7.44 INCH
• Approval: UL, CSA
• Additional Information: ROHS COMPATIBLE; CABLE ENTRY TYPE BEVELED, CHAMFERED; WIRE STRIP LENGTH 3 1/4 INCH; TEMPERATURE RATING 90 DEG C
• Catalog Number: YA452N
• Brand Name: HYLUG[T], BURNDY[R]
• Model: YA-2N
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 1250 KCMIL STRANDED
• Barrel Type: LONG, STANDARD, STRAIGHT
• Barrel Length: 3.19 INCH
• Catalog Description: 1250 KCMIL CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, LONG BARREL INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, YELLOW COLOR CODE, 29 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Material; Yellow Color; 7.44 Inch Overall Length; 3.19 Inch Barrel Length; Copper Conductor Material; UL 486A-486B, CSA Approval; 600 to 35000 Volt Voltage Rating; 1250 kcmil Conductor Size; 1/2 Inch Stud Size; 29 Die Index; 2.46 Inch Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Long Barrel Type; HYLUG[TM] Brand; Type Terminal; Plating Type Tin; Barrel Style Chamfered; Tongue Angle Straight; Application Code Conductor
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810524503
• SKU Name: bur ya452n

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
