Burndy YA45-4N 4H Copper Lug

Overview

Burndy YA45-4N 4H Copper Lug

Product Specifications

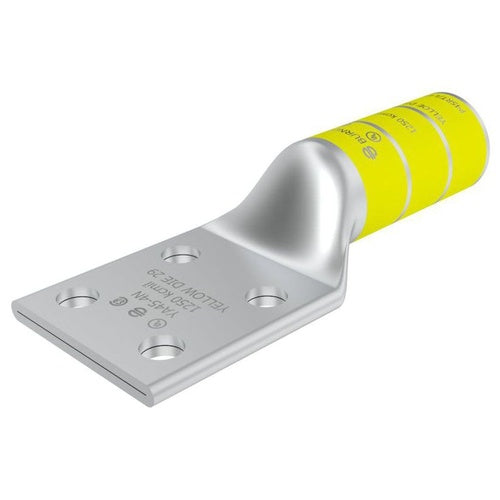

• Catalog Description: COPPER COMPRESSION LUG, 4 HOLE W/O INSPECTION WINDOW, 1250 KCMIL, 1/2" STUD, 1-3/4" STUD HOLE SPACING, LONG BARREL, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Seamless Copper Material; Yellow Color; Copper Conductor Material; UL 486-A Approval; 1250 kcmil Conductor Size; 1/2 Inch Stud Size; 29 Die Index; 3 Inch W Pad Size; 4 Pad Hole(S); Long, Straight Barrel Type; HYLUG[T] Brand; YA-4N Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810035665
• SKU Name: bur ya454n

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
