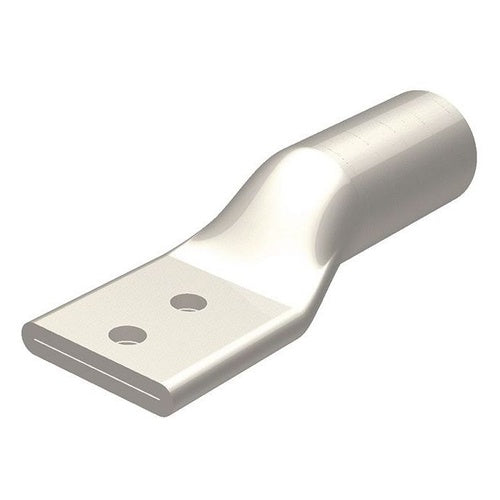

Burndy YA46A3 1500Mcm Aluminum/Copper 2-Hole Lug

Overview

Burndy YA46A3 1500Mcm Aluminum/Copper 2-Hole Lug

Product Specifications

• Catalog Description: 1500 KCMIL, AL TERMINAL, TWO HOLE, 1/2" STUD SIZE, 1-3/4" HOLE SPACING, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, BLUE COLOR CODE, 478 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Aluminum Material; Blue Color; 8.73 Inch Overall Length; Aluminum/Copper Conductor Material; UL 486-A, UL 486-B, CSA Approval; 600 V to 35 kV Voltage Rating; 1500 kcmil (Aluminum), 1500 kcmil Stranded (Copper) Conductor Size; 1/2 Inch Stud Size; 478 Die Index; 3.08 Inch W X 0.81 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Standard, Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Wire Strip Length 2 3/4 Inch; Temperature Rating 75 Deg C; YA-A Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810754153
• SKU Name: bur ya46a3
