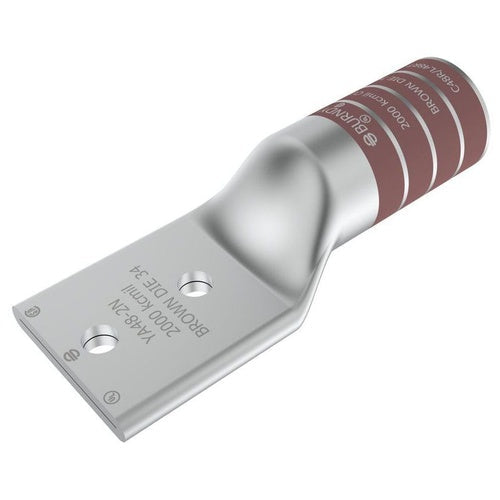

Burndy YA48-2N 2000Mcm Copper 2-Hole Lug

Overview

Burndy YA48-2N 2000Mcm Copper 2-Hole Lug

Product Specifications

• UPC: 78181052551
• Pad Size: 3.1 Inch W x 0.46 Inch Thk
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Color: Brown
• Die Index: 34
• Material: Electro-Tin Plated Copper
• Overall Length: 7.98 Inch
• Approval: UL 468A/468B, CSA
• Additional Information: RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 3-1/2 Inch; Cable Entry Type Beveled Entry, Chamfered
• Catalog Number: YA482N
• Brand Name: HYLUG[TM]
• Model: YA-2N
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 2000 KCMIL Stranded (Code)
• Barrel Type: Long, Standard, Straight
• Barrel Length: 3.44 Inch
• Catalog Description: 2000 KCMIL CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, LONG BARREL INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BROWN COLOR CODE, 34 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Brown Color; 7.98 Inch Overall Length; 3.44 Inch Barrel Length; Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 2000 kcmil Stranded (Code) Conductor Size; 1/2 Inch Stud Size; 34 Die Index; 3.1 Inch W X 0.46 Inch Thk Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Long, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 3-1/2 Inch; Cable Entry Type Beveled Entry, Chamfered; YA-2N Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810525517
• SKU Name: bur ya482n
