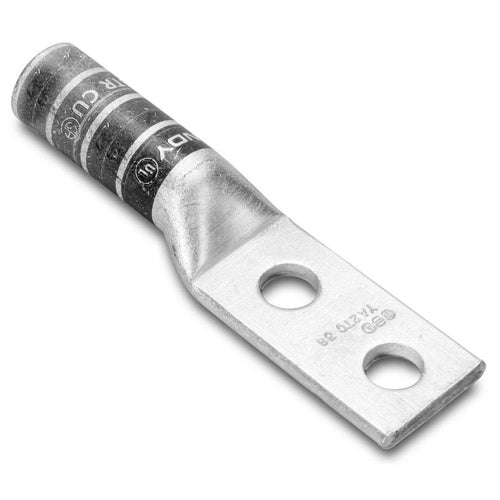

Burndy YA4C2TC14E2 4Str Copper 2-Hole Long Lug

Overview

Burndy YA4C2TC14E2 4Str Copper 2-Hole Long Lug

Product Specifications

• Catalog Description: 4 AWG CU, TWO HOLE, 1/4 STUD SIZE, 3/4 HOLE SPACING, LONG BARREL INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, GRAY COLOR CODE, 8 OR 346 DIE INDEX.
• Full Technical Description: Electro-Tin Plated Copper Material; Gray Color; 2.83 Inch Overall Length; 1.12 Inch Barrel Length; Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 40 (Navy), 4 AWG Stranded (Code) Conductor Size; 1/4 Inch Stud Size; 8/346 Die Index; 0.5 Inch W X 0.09 Inch Thk Pad Size; 2 Pad Hole(S); 3/4 Inch Pad Hole Spacing; Long, Skived, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-3/16 Inch; Cable Entry Type Beveled Entry, Chamfered; YA-2TC Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• UPC 12 Digit: 781810019740
• SKU Name: bur ya4c2tc14e2
