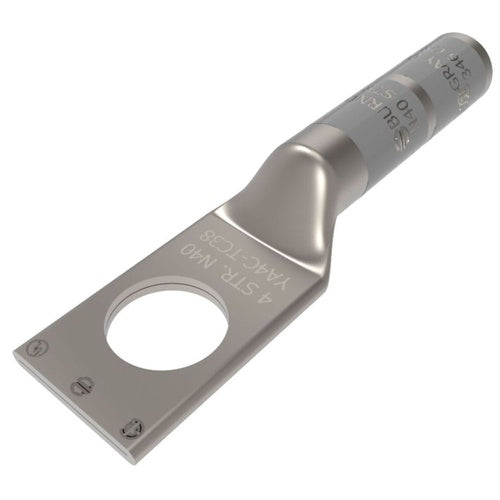

Burndy YA4CN #4Str-1/2 Nema HYLUG

Overview

Burndy YA4CN #4Str-1/2 Nema HYLUG

Product Specifications

• UPC: 78181005142
• Pad Size: 0.83 Inch Width x 0.12 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Gray
• Die Index: 8/346
• Material: Electro Tin Plated Copper
• Overall Length: 2.69 Inch
• Approval: UL, CSA
• Additional Information: ROHS COMPATIBLE; TEMPERATURE RATING 90 DEG C; WIRE STRIP LENGTH 1-3/16 INCH; CABLE ENTRY TYPE BEVELED ENTRY, CHAMFERED
• Catalog Number: YA4CN
• Brand Name: HYLUG[TM]
• Model: YA
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 4 AWG Stranded (Code)
• Barrel Type: Long, Straight
• Barrel Length: 1.12 Inch
• Catalog Description: 4 AWG CU, ONE HOLE, 1/2 STUD SIZE, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV,GRAY COLOR CODE, 8 OR 346 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Gray Color; 2.69 Inch Overall Length; 1.12 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 4 AWG Stranded (Code) Conductor Size; 1/2 Inch Stud Size; 8/346 Die Index; 0.83 Inch Width X 0.12 Inch Thickness Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 1-3/16 Inch; Cable Entry Type Beveled Entry, Chamfered; YA Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810051429
• SKU Name: bur ya4cn

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
