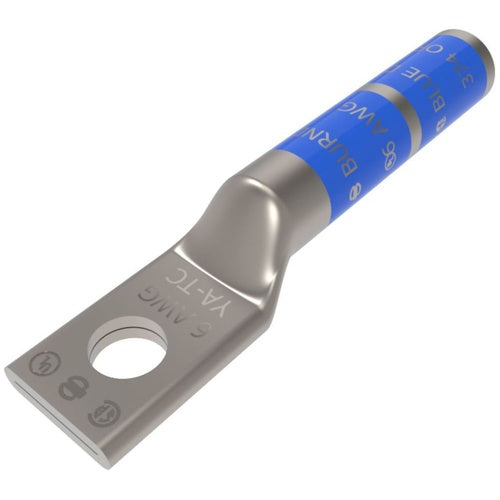

Burndy YA6C 6Awg Copper 1-Hole Lug 502175

Overview

Burndy YA6C 6Awg Copper 1-Hole Lug 502175

Product Specifications

• UPC: 78181050175
• Pad Size: 0.41 Inch Width x 0.09 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: 1/4 Inch
• Color: Blue
• Die Index: 7 or 374
• Material: Electro-Tin Plated Copper
• Overall Length: 1.81 Inch
• Approval: UL 468A/B, CSA, UL
• Additional Information: RoHS Compliant; Wire Strip Length 1-3/16 Inch; Cable Entry Type Beveled; Temperature Rating 90 Deg C
• Catalog Number: YA6C
• Brand Name: HYLUG[TM]
• Model: YA
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 6 AWG (Solid/Stranded)
• Barrel Type: Long, Standard, Straight, Chamfered, Non-Insulated
• Barrel Length: 1.12 Inch
• Catalog Description: 6 AWG CU, ONE HOLE, 1/4 STUD SIZE, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV,BLUE COLOR CODE, 7 OR 374 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Blue Color; 1.81 Inch Overall Length; 1.12 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 6 AWG Solid/Stranded (Code) Conductor Size; 1/4 Inch Stud Size; 7/374 Die Index; 0.41 Inch Width X 0.09 Inch Thickness Pad Size; 1 Pad Hole(S); Long, Straight, Non-Insulated Barrel Type; Hylug Brand; RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 1-3/16 Inch; Temperature Rating 90 Deg C; Less Inspection Window; YA Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810501757
• SKU Name: bur ya6c
