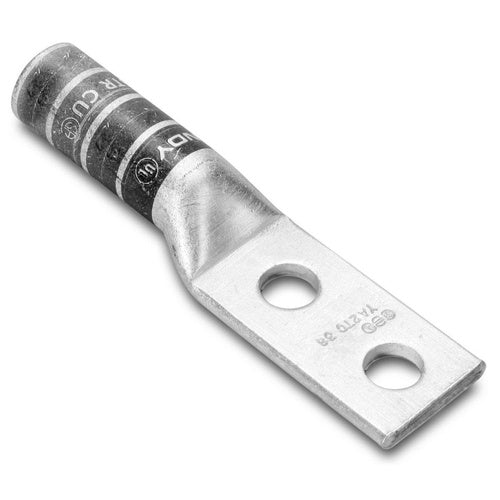

Burndy YA6C2-TC14 Copper HYLUG 6Str 2-Hole 50237T

Overview

Burndy YA6C2-TC14 Copper HYLUG 6Str 2-Hole 50237T

Product Specifications

• UPC: 78181001951
• Pad Size: 0.45 Inch Width x 0.08 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 0.62 Inch
• Stud Size: 1/4 Inch
• Color: Blue
• Die Index: 7/374
• Material: Electro Tin Plated Copper
• Overall Length: 2.65 Inch
• Approval: UL 468A/468B, CSA
• Catalog Number: YA6C2TC14
• Brand Name: HYLUG[TM]
• Model: YA-2TC
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 6 AWG Stranded (Code)
• Barrel Type: Long, Standard, Straight, Skived
• Barrel Length: 1.12 Inch
• Catalog Description: 6 AWG CU, TWO HOLE, 1/4 STUD SIZE, 5/8 HOLE SPACING, LONG BARREL INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BLUE COLOR CODE, 7 OR 374 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Blue Color; 2.65 Inch Overall Length; 1.12 Inch Barrel Length; Copper Conductor Material; UL 468A/468B, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 6 AWG Stranded (Code) Conductor Size; 1/4 Inch Stud Size; 7/374 Die Index; 0.45 Inch Width X 0.08 Inch Thickness Pad Size; 2 Pad Hole(S); 0.62 Inch Pad Hole Spacing; Long, Standard, Straight, Skived Barrel Type; HYLUG[TM] Brand; YA-2TC Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810019511
• SKU Name: bur ya6c2tc14

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
