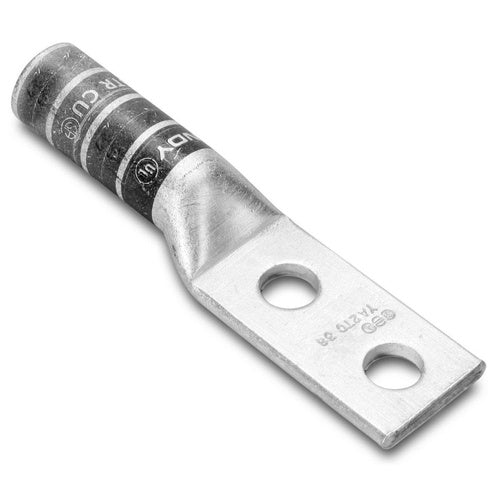

Burndy YA6C2-TC38 6Awg Copper 2-Hole Lug 50235R

Overview

Burndy YA6C2-TC38 6Awg Copper 2-Hole Lug 50235R

Product Specifications

• UPC: 78181001916
• Pad Size: 0.58 Inch W x 0.06 Inch Thk
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1 Inch
• Stud Size: 3/8 Inch
• Color: Blue
• Die Index: 7/374
• Material: Electro-Tin Plated Copper
• Overall Length: 3.22 Inch
• Approval: UL 468A/B, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 1-3/16 Inch; Cable Entry Type Chamfered, Beveled Entry; Includes Inspection Window; Temperature Rating 90 Deg C
• Catalog Number: YA6C2TC38
• Brand Name: HYLUG[TM]
• Model: Type YA-2TC
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Copper
• Conductor Size: 6 AWG Stranded (Code)
• Barrel Type: Long, Skived, Standard, Straight
• Barrel Length: 1.12 Inch
• Catalog Description: 6 AWG CU, TWO HOLE, 3/8 STUD SIZE, 1 HOLE SPACING, LONG BARREL INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BLUE COLOR CODE, 7 OR 374 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Blue Color; 3.22 Inch Overall Length; 1.12 Inch Barrel Length; Copper Conductor Material; UL 468A/B, CSA Approval; 600 V to 35 kV Voltage Rating; 6 AWG Stranded (Code) Conductor Size; 3/8 Inch Stud Size; 7/374 Die Index; 0.58 Inch W X 0.06 Inch Thk Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Long, Skived, Standard, Straight Barrel Type; Hylug Brand; RoHS Compliant; Wire Strip Length 1-3/16 Inch; Cable Entry Type Chamfered, Beveled Entry; Includes Inspection Window; Temperature Rating 90 Deg C; TYPE YA-2TC Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810019160
• SKU Name: bur ya6c2tc38

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
