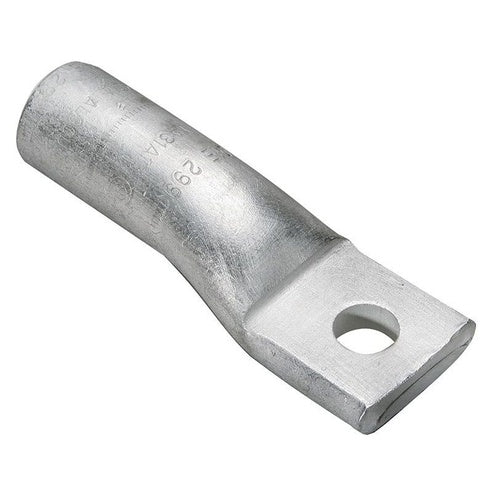

Burndy YA6CA3 6Awg Aluminum/Copper 1-Hole Lug

Overview

Burndy YA6CA3 6Awg Aluminum/Copper 1-Hole Lug

Product Specifications

• UPC: 78181075215
• Pad Size: 0.65 Inch W x 0.09 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 3/8 Inch
• Color: Gray
• Die Index: 346
• Material: Electro-Tin Plated Wrought Aluminum
• Overall Length: 2.28 Inch
• Approval: UL 468A/468B, CSA
• Additional Information: RoHS Compatible; Includes Color Coded End Cap; Temperature Rating 90 Deg C; Wire Strip Length 3/4 Inch; Cable Entry Type Beveled Entry
• Catalog Number: YA6CA3
• Brand Name: HYLUG[TM]
• Model: YA-A
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Aluminum/Copper
• Conductor Size: 6 AWG (Aluminum), 6 AWG Stranded (Copper)
• Barrel Type: Standard, Straight
• Barrel Length: 0.75 Inch
• Catalog Description: 6 AWG, AL TERMINAL, ONE HOLE, 3/8", STUD SIZE, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, GRAY COLOR CODE, 346 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Wrought Aluminum Material; Gray Color; 2.28 Inch Overall Length; 0.75 Inch Barrel Length; Aluminum/Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 6 AWG (Aluminum), 6 AWG Stranded (Copper) Conductor Size; 3/8 Inch Stud Size; 346 Die Index; 0.65 Inch W X 0.09 Inch Thk Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Color Coded End Cap; Temperature Rating 90 Deg C; Wire Strip Length 3/4 Inch; Cable Entry Type Beveled Entry; YA-A Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810752159
• SKU Name: bur ya6ca3
