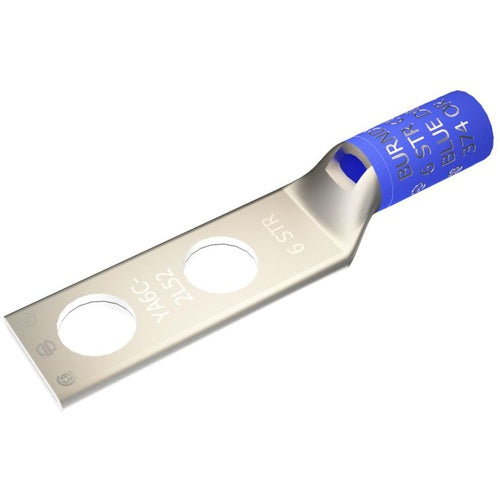

Burndy YA6CL-2TC10 6Awg Copper 2-Hole Lug

Overview

Burndy YA6CL-2TC10 6Awg Copper 2-Hole Lug

Product Specifications

• UPC: 78181001844
• Pad Size: 0.42 Inch W x 0.09 Inch Thk
• Number Of Pad Holes: 2
• Pad Hole Spacing: 5/8 Inch
• Stud Size: #10
• Color: Blue
• Die Index: 7/374
• Material: Electro-Tin Plated Copper
• Overall Length: 1.94 Inch
• Approval: UL 468A/468B, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 5/8 Inch; Cable Entry Type Beveled Entry, Chamfered
• Catalog Number: YA6CL2TC10
• Brand Name: HYLUG[TM]
• Model: YA-L-2TC
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 6 AWG Stranded (Code)
• Barrel Type: Short, Skived, Standard, Straight
• Barrel Length: 0.54 Inch
• Catalog Description: CU COMPRESSION TERMINAL CODE CONDUCTOR, BEVELED ENTRY, 2 HOLE W/INSPWINDOW, #6AWG (CODE), 600V-35KV, #10 STUD, 0.62 SPACING, STANDARD BARREL, TIN-ELECTRO PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Blue Color; 1.94 Inch Overall Length; 0.54 Inch Barrel Length; Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 6 AWG Stranded (Code) Conductor Size; #10 Stud Size; 7/374 Die Index; 0.42 Inch W X 0.09 Inch Thk Pad Size; 2 Pad Hole(S); 5/8 Inch Pad Hole Spacing; Short, Skived, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 5/8 Inch; Cable Entry Type Beveled Entry, Chamfered; YA-L-2TC Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810018446
• SKU Name: bur ya6cl2tc10

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
