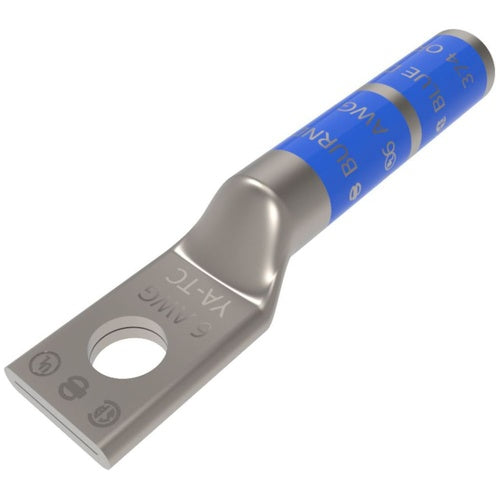

Burndy YA6CTC10 6Awg Copper 1-Hole Lug

Overview

Burndy YA6CTC10 6Awg Copper 1-Hole Lug

Product Specifications

• Catalog Description: 6 AWG CU, ONE HOLE, #10 STUD SIZE, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV,BLUE COLOR CODE, 7 OR 374 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Blue Color; 1.89 Inch Overall Length; 1.12 Inch Barrel Length; Copper Conductor Material; UL 467, CSA Approval; 600 V to 35 kV Voltage Rating; 6 AWG Stranded (Code) Conductor Size; #10 Stud Size; 7/374 Die Index; 0.42 Inch W X 0.09 Inch Thk Pad Size; 1 Pad Hole(S); Long, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-3/16 Inch; Cable Entry Type Beveled Entry, Chamfered; YA-TC Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810019061
• SKU Name: bur ya6ctc10
