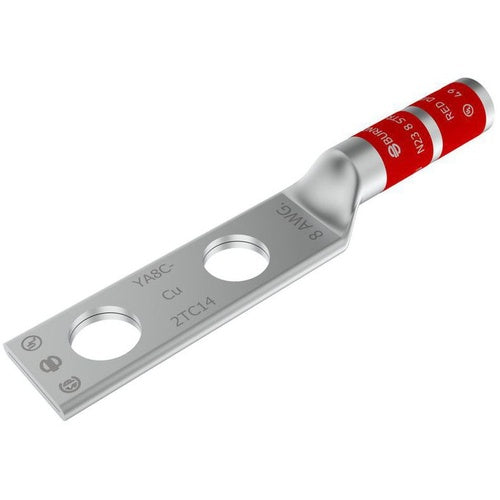

Burndy YA8C2-TC14 Cuhylg 8Str 2-Hole 50238V

Overview

Burndy YA8C2-TC14 Cuhylg 8Str 2-Hole 50238V

Product Specifications

• UPC: 78181001969
• Pad Size: 0.44 Inch Width x 0.08 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 0.62 Inch
• Stud Size: 1/4 Inch
• Color: Red
• Die Index: 49
• Material: Electro Tin Plated Copper
• Overall Length: 2.33 Inch
• Approval: UL 468A/468B, CSA
• Catalog Number: YA8C2TC14
• Brand Name: HYLUG[TM]
• Model: YA-2TC
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 8 AWG Solid, 8 AWG Stranded (Code)
• Barrel Type: Long, Standard, Straight
• Barrel Length: 0.81 Inch
• Catalog Description: 8 AWG CU, TWO HOLE, 1/4 STUD SIZE, 5/8 HOLE SPACING, LONG BARREL INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, RED COLOR CODE, 49 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Red Color; 2.33 Inch Overall Length; 0.81 Inch Barrel Length; Copper Conductor Material; UL 468A/468B, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 8 AWG Solid, 8 AWG Stranded (Code) Conductor Size; 1/4 Inch Stud Size; 49 Die Index; 0.44 Inch Width X 0.08 Inch Thickness Pad Size; 2 Pad Hole(S); 0.62 Inch Pad Hole Spacing; Long, Standard, Straight Barrel Type; HYLUG[TM] Brand; YA-2TC Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810019696
• SKU Name: bur ya8c2tc14
