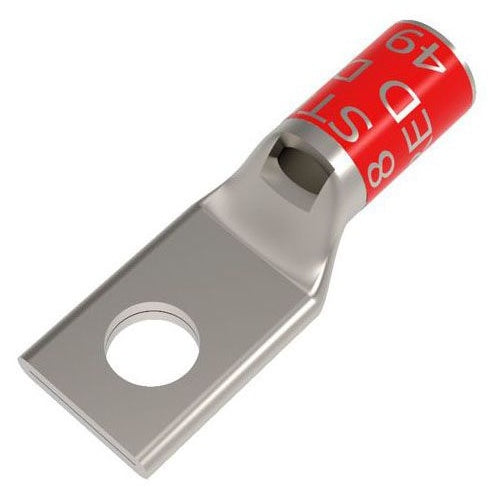

Burndy YA8CL2BOX 8Awg Aluminum/Copper 1-Hole Lug

Overview

Burndy YA8CL2BOX 8Awg Aluminum/Copper 1-Hole Lug

Product Specifications

• UPC: 78181052568
• Pad Size: 0.52 Inch Width x 0.06 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: 5/16 Inch
• Color: Red
• Die Index: 49
• Material: Electro Tin Plated Copper
• Overall Length: 1.38 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 7/16 Inch; Temperature Rating 90 Deg C; With Inspection Window
• Catalog Number: YA8CL2BOX
• Brand Name: HYLUG[TM], HYDENT[TM]
• Model: YA-L
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 6 AWG Solid, 8 AWG Stranded (Code), 23 (Navy), 37/24 (DLO), 8 AWG (Flex)
• Barrel Type: Standard, Straight, Non-Insulated
• Barrel Length: 0.44 Inch
• Catalog Description: 8 AWG CU, ONE HOLE, 5/16 STUD SIZE, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA 90 UP TO 35KV, RED COLOR CODE, 49 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Red Color; 1.38 Inch Overall Length; 0.44 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 6 AWG Solid, 8 AWG Stranded (Code), 23 (Navy), 37/24 (Dlo), 8 AWG (Flex) Conductor Size; 5/16 Inch Stud Size; 49 Die Index; 0.52 Inch Width X 0.06 Inch Thickness Pad Size; 1 Pad Hole(S); Standard, Straight, Non-Insulated Barrel Type; Hylug , Hydent Brand; RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 7/16 Inch; Temperature Rating 90 Deg C; With Inspection Window; YA-L Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810525685
• SKU Name: bur ya8cl2box

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
