Burndy YA8CL-2TC14E2 Hylg-8Str

Overview

Burndy YA8CL-2TC14E2 Hylg-8Str

Product Specifications

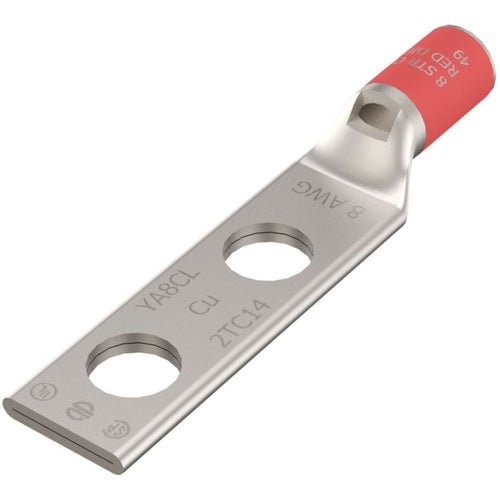

• Catalog Description: 8 AWG CU, TWO HOLE, 1/4 STUD SIZE, 3/4 HOLE SPACING, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, RED COLOR CODE, 49 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Size Image: h
• Full Technical Description: Electro Tin Plated Copper Material; Red Color; 2.08 Inch Overall Length; 0.44 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 37/24, 8 AWG (Weld), 8 AWG Solid, 6 AWG Solid Conductor Size; 1/4 Inch Stud Size; 49 Die Index; 0.44 Inch W X 0.08 Inch Thk Pad Size; 2 Pad Hole(S); 3/4 Inch Pad Hole Spacing; Long, Skived, Standard, Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Cable Entry Type Beveled, Chamfered; Wire Strip Length 7/16 Inch; Temperature Rating 90 Deg C; With Inspection Window; YA-L-2TC Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810018460
• SKU Name: bur ya8cl2tc14e2

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
